Topic: Jay's 90 CRX build. A6/Y8 Vitara, Holset. Parting out. Please see FS sec. (Read 81806 times)

ApexSilver06MR · « **on:** May 30, 2009, 02:38:43 AM »

Alright. I finally got the ball rolling again with my build on the CRX. its been 2+ years and with the new baby makes it hard.

A6/Y8 Mini me turbo Bitches

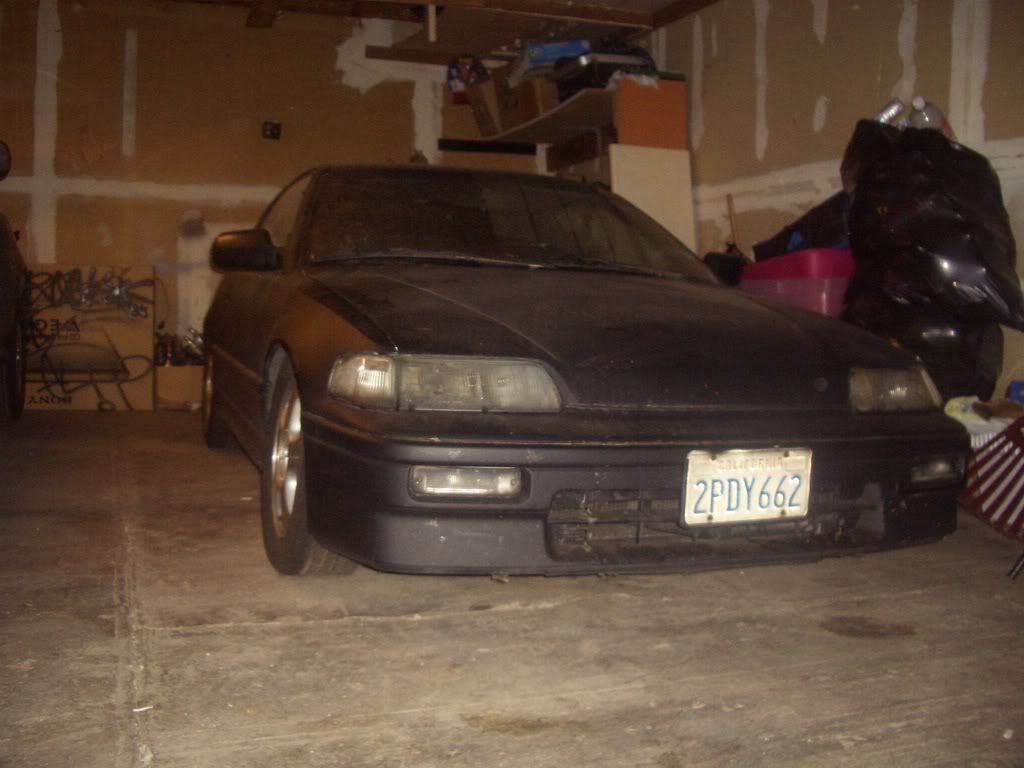

at least I still have the scraper I still drive around for fun.
http://www.realhomemadeturbo.com/forum/index.php?topic=26.0

Build Specs:

90 Hella Fast.
A6 block
FJ custom length I-Beams
75mm Vitaras
Stock y8 SOHC VTAK Head
ARP headstuds from Lightning Motorsports (they sold the kit with 1 y8 stud for the swap. They actually shipped me 2 sets on accident. dont know what to do about the second one)
MLS head gasket
Stock Y8 intake mani (may send this to chris to try to work some magic with it)

Mars Galaxy spec 4 puck unsprung disc (custom piece. 21 spline count hub with a 212mm disc)
Pluto pressure plate

Im pretty sure I forgot hella shit. I have a few turbos for this thing and not sure what I am going to use so far. Also turbo mani will be coming from CSaddict. not sure if im going to go top mount or log..

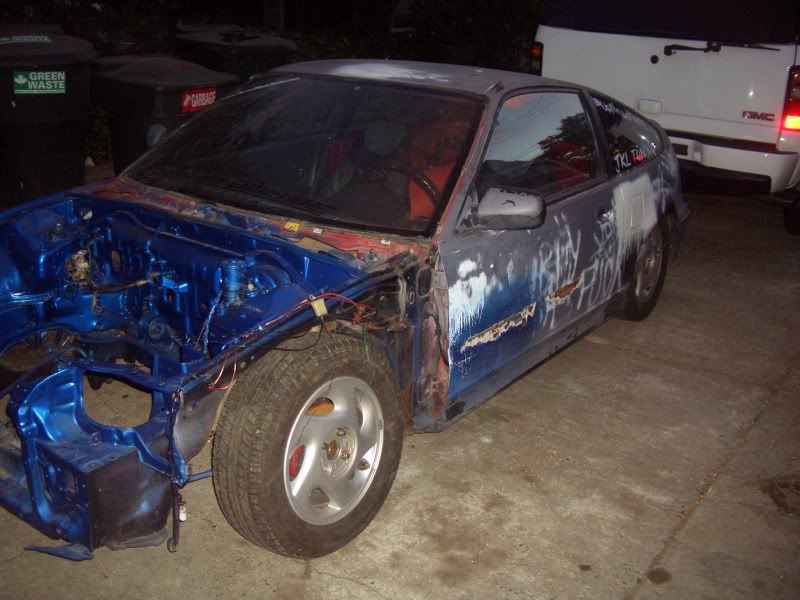

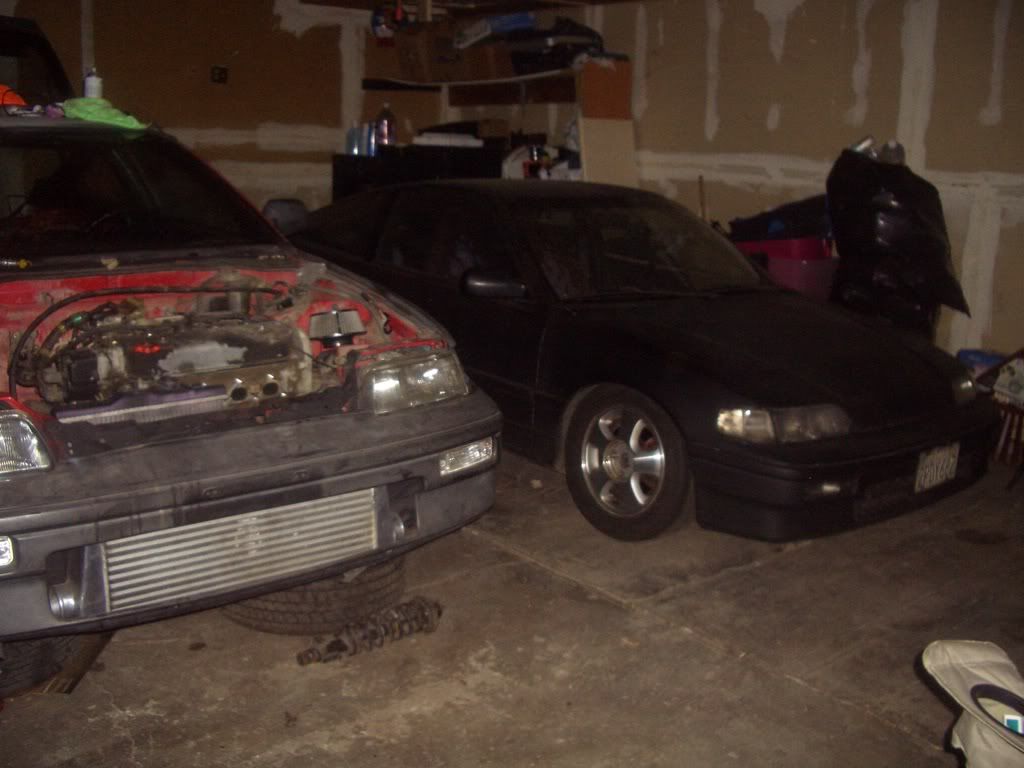

here is the doner vehicle. I bought this shit all stock a long time ago for $300

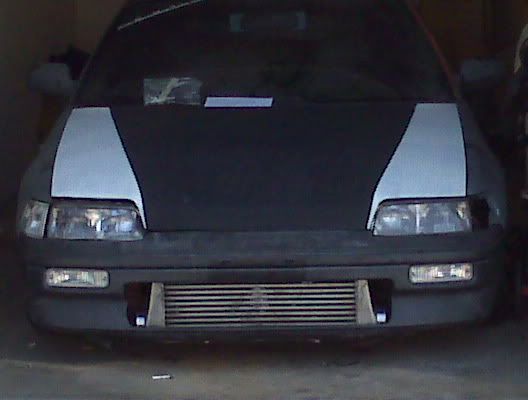

thats how it sits right now.

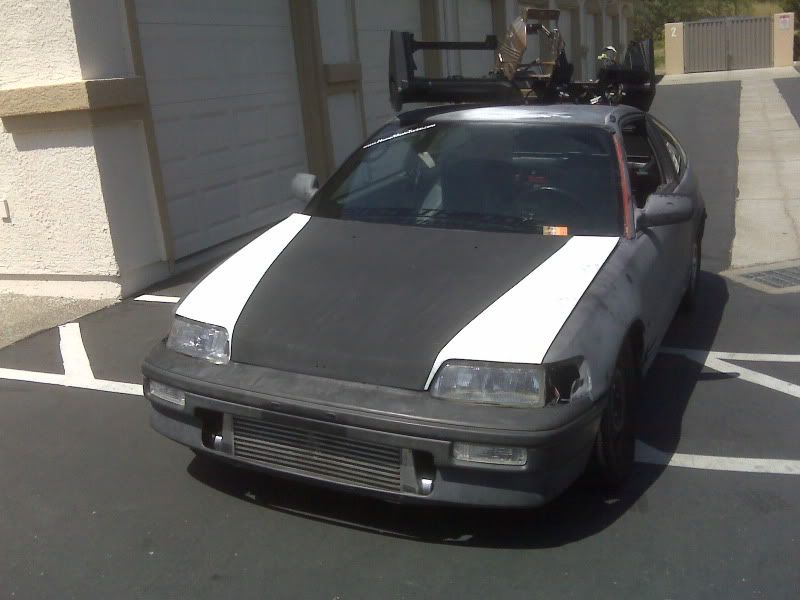

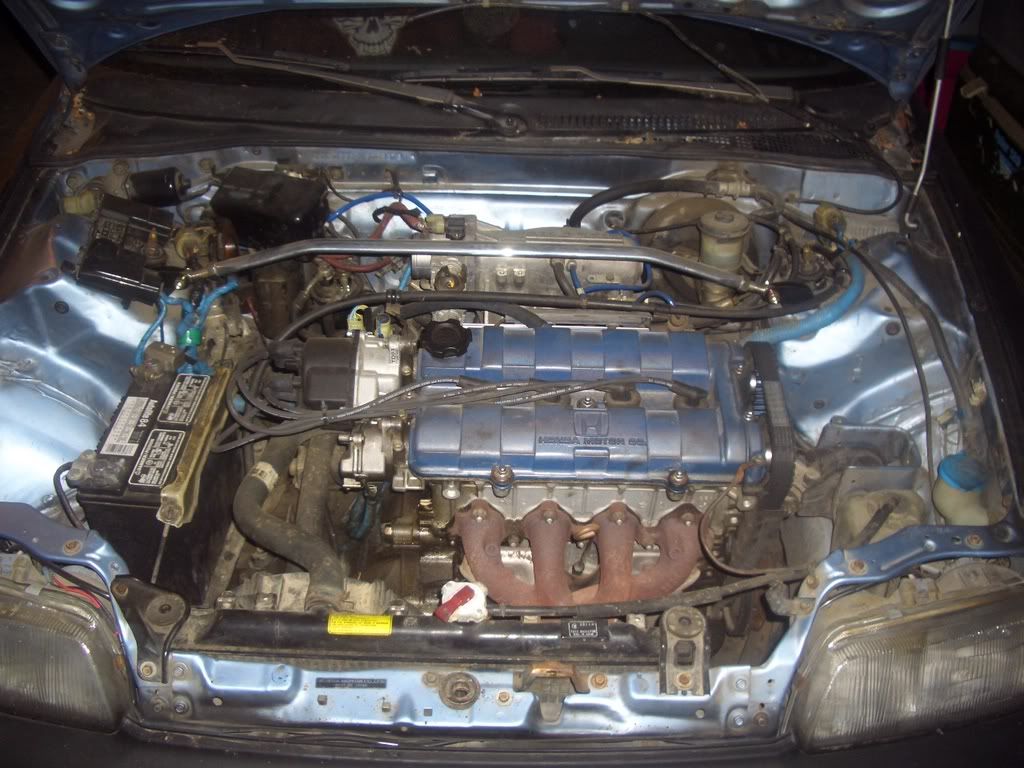

here are a few pics of when it was last running

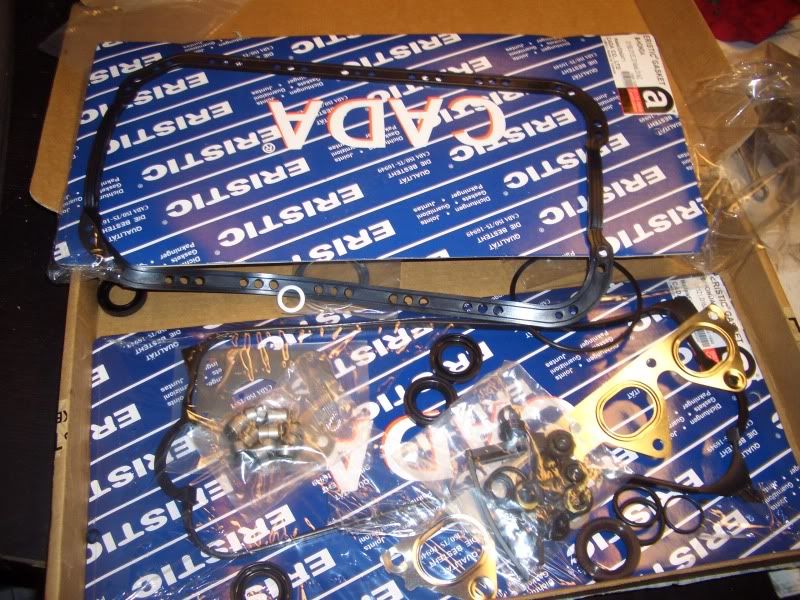

the e bay gaskets

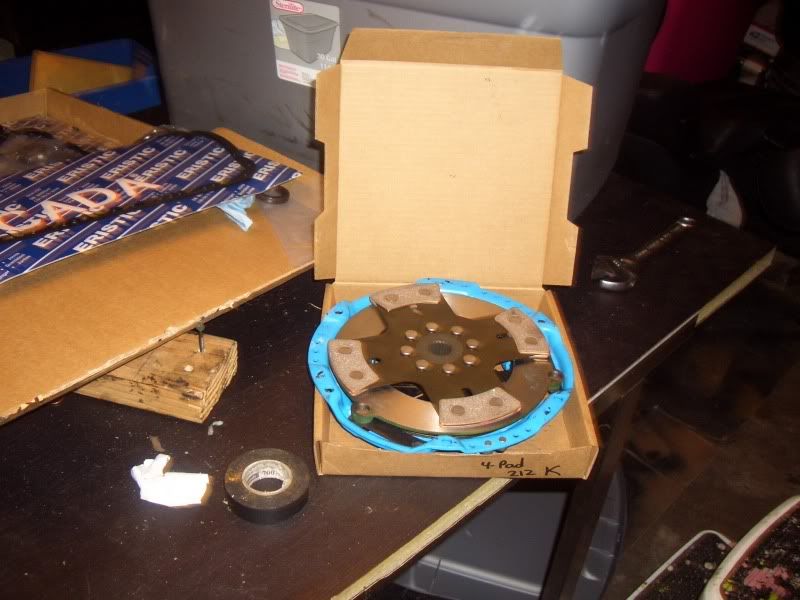

Galaxy disc with pluto pressure plate

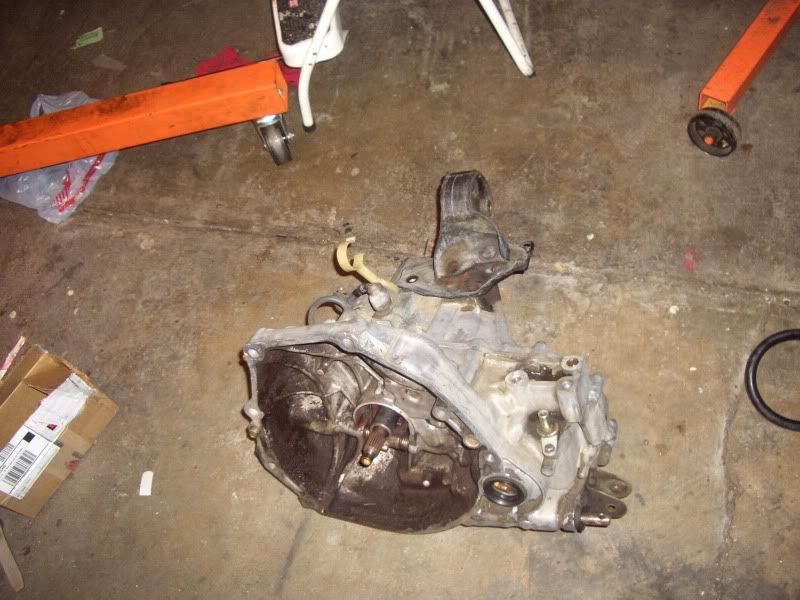

88si trans i scored from chris for some tasty lumpia that i cooked for him. i even got personal delivery. This nog is top notch

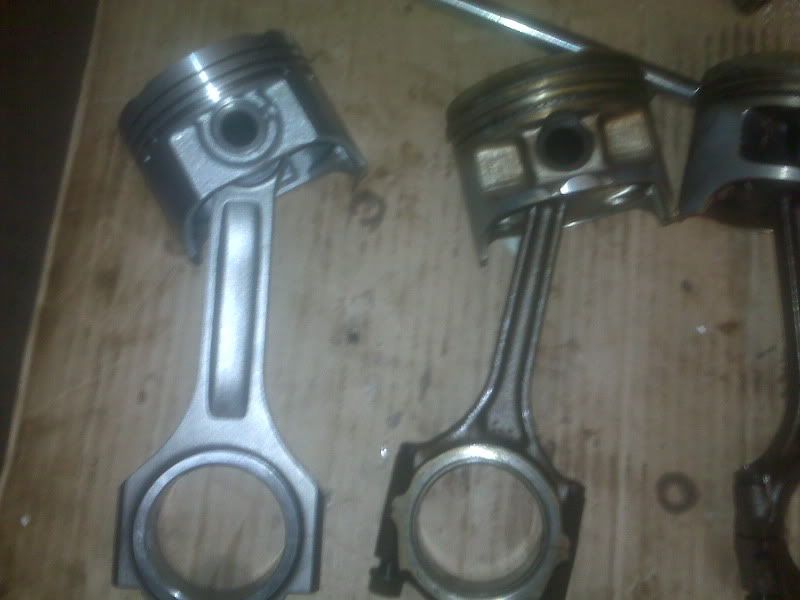

vitaras in FJT I beams compared to stock

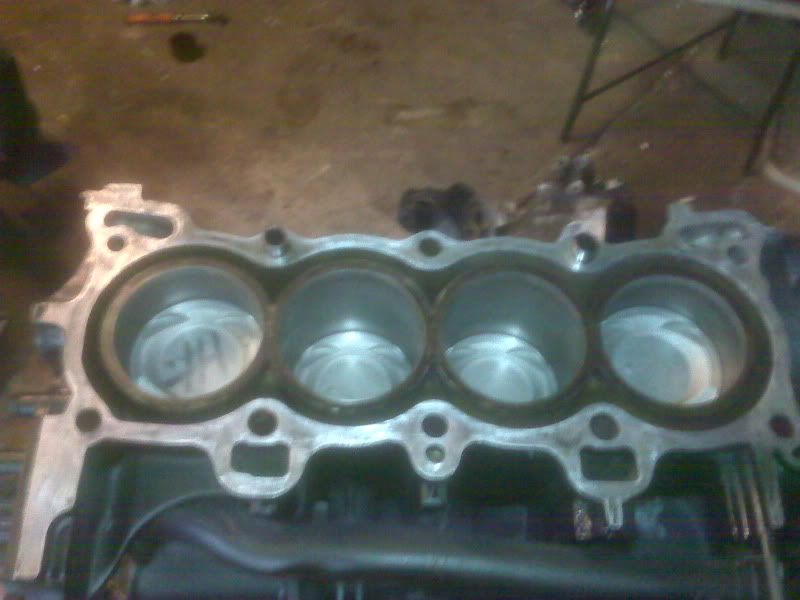

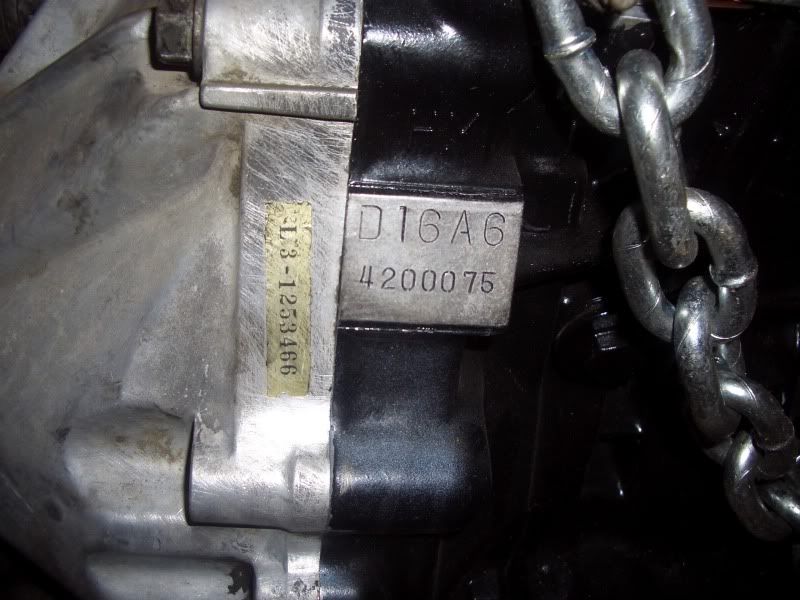

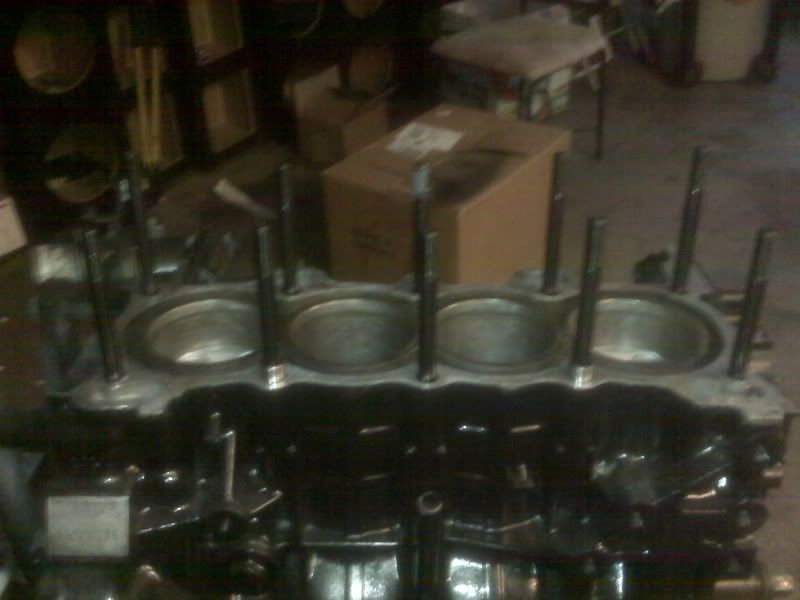

the a6 big block!

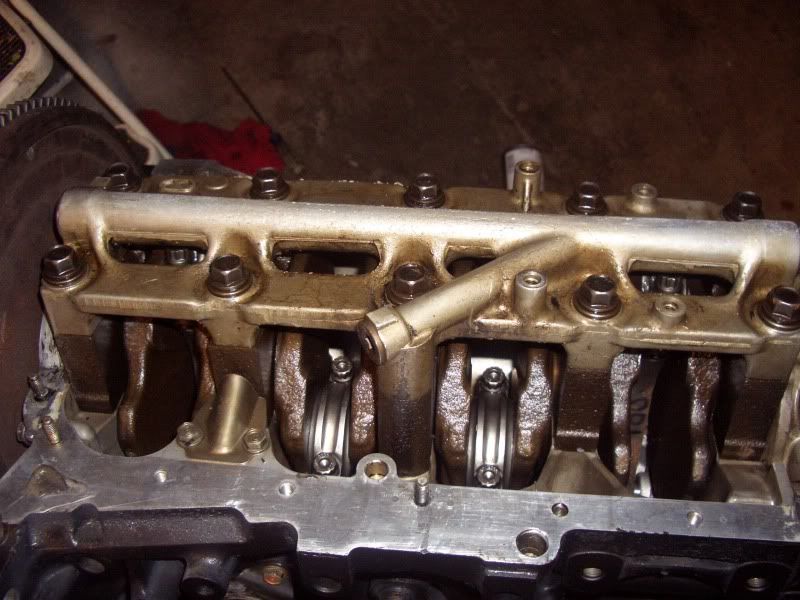

rods look good

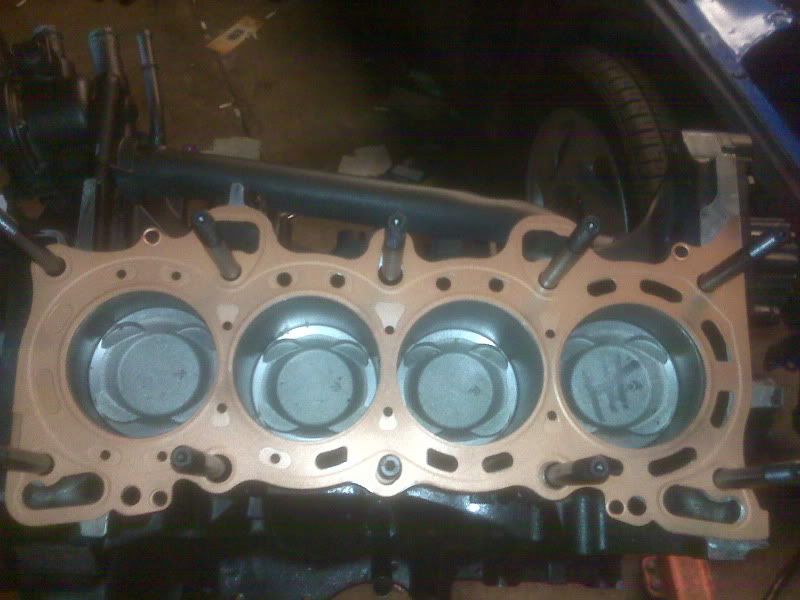

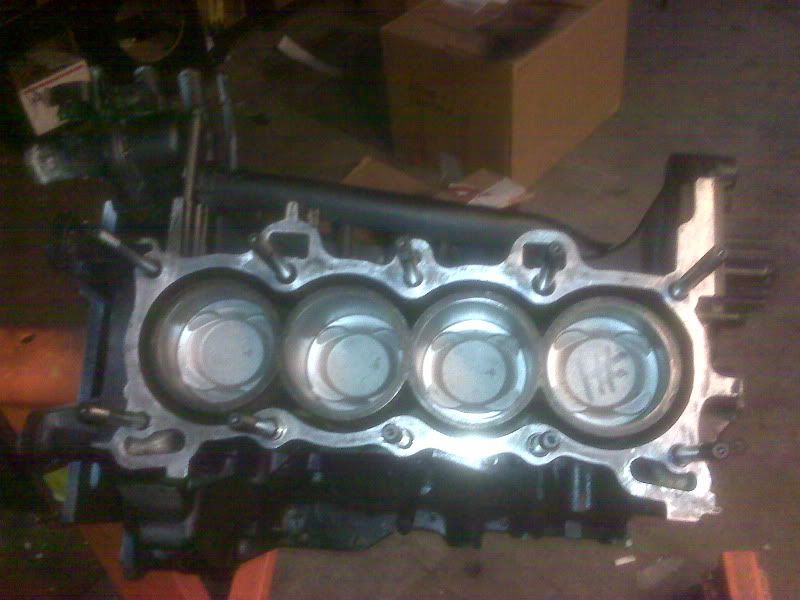

copper sprayed hg

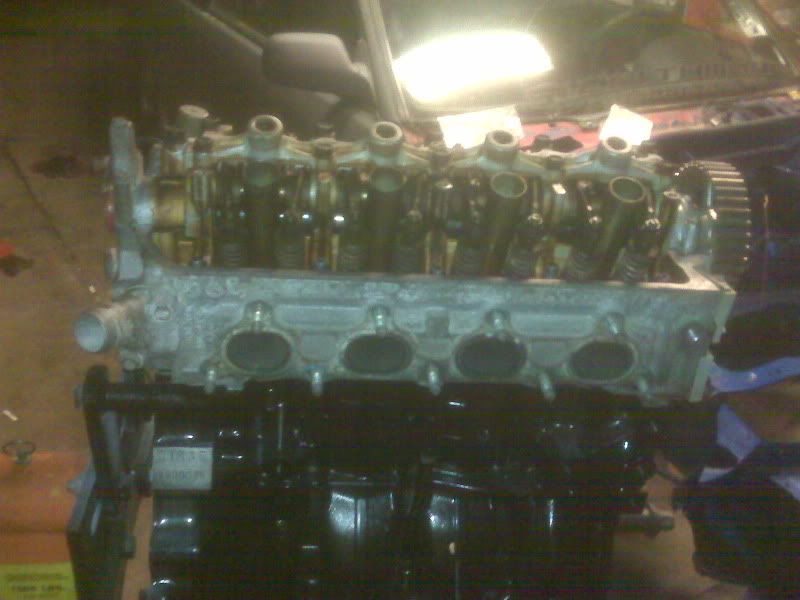

y8 meets a6

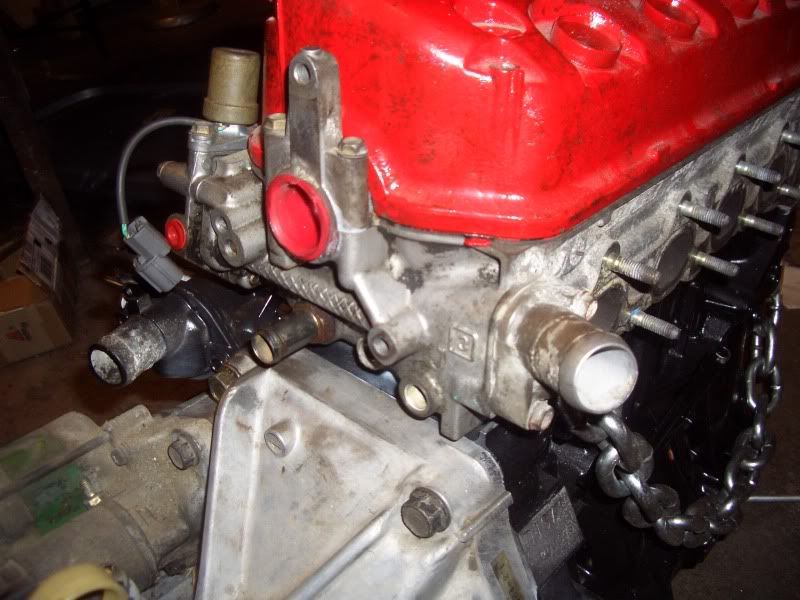

pic of vtak solenoid

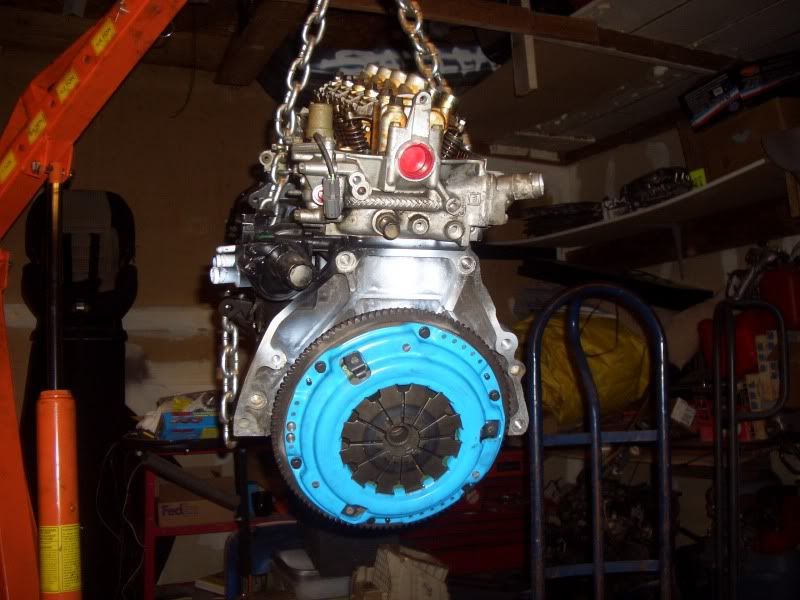

clutch on

misc pics

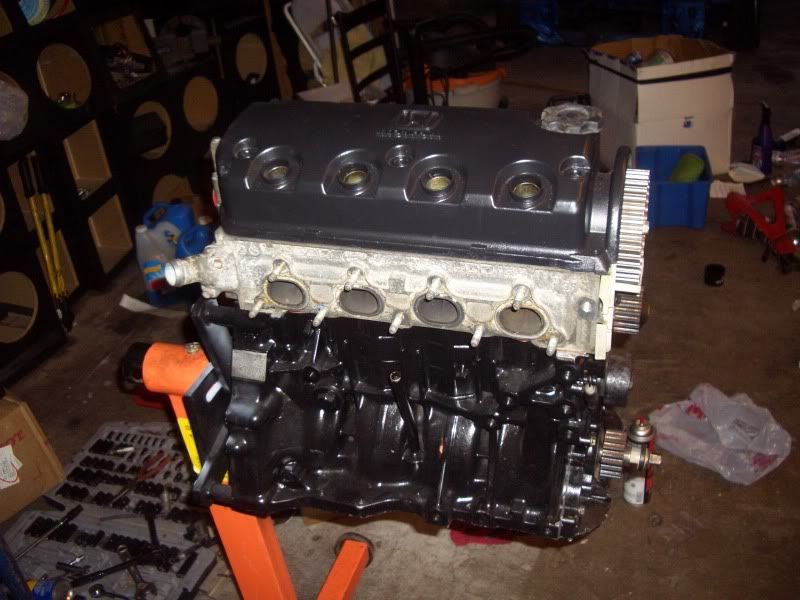

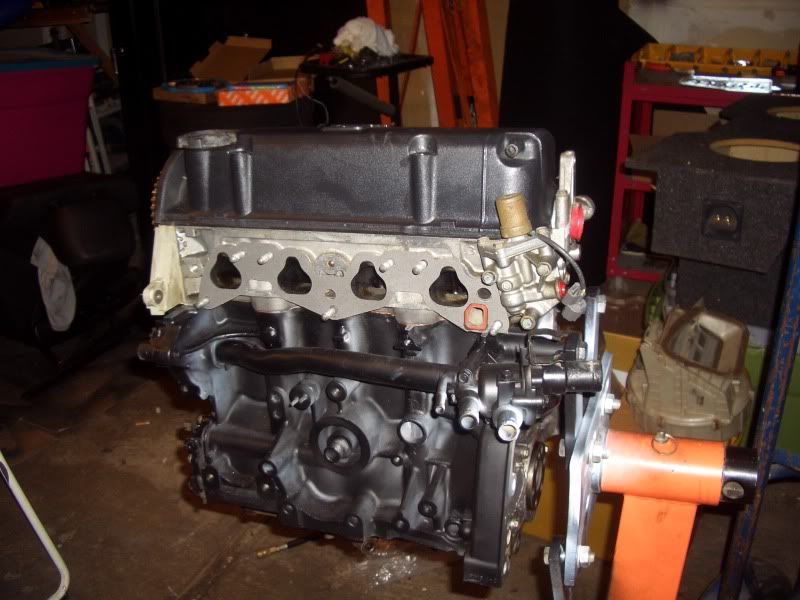

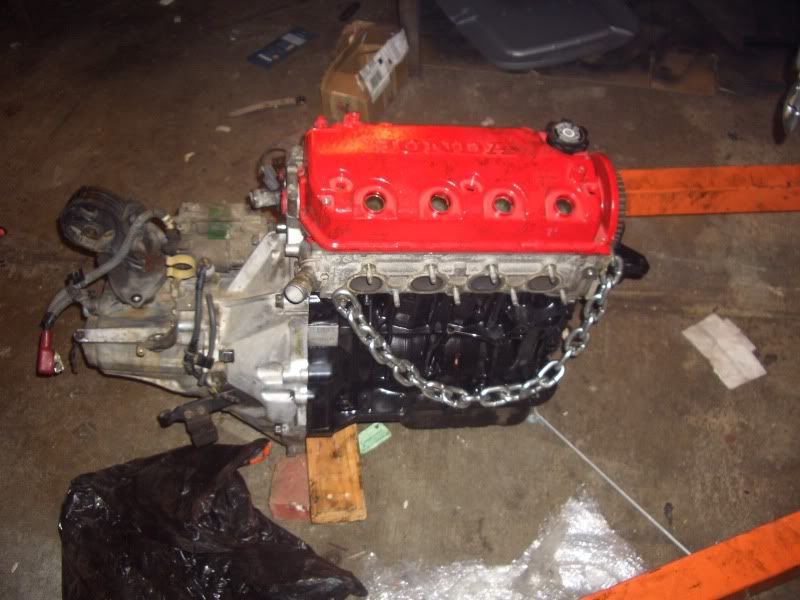

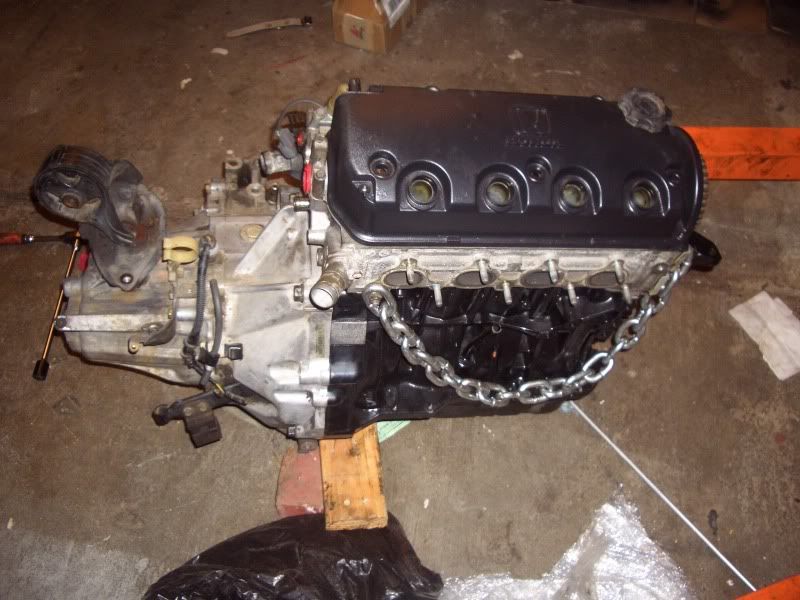

poll will be up about the next 2 pics. which valve cover should i use?

This is for Chris. Too bad i dont have this one anymore

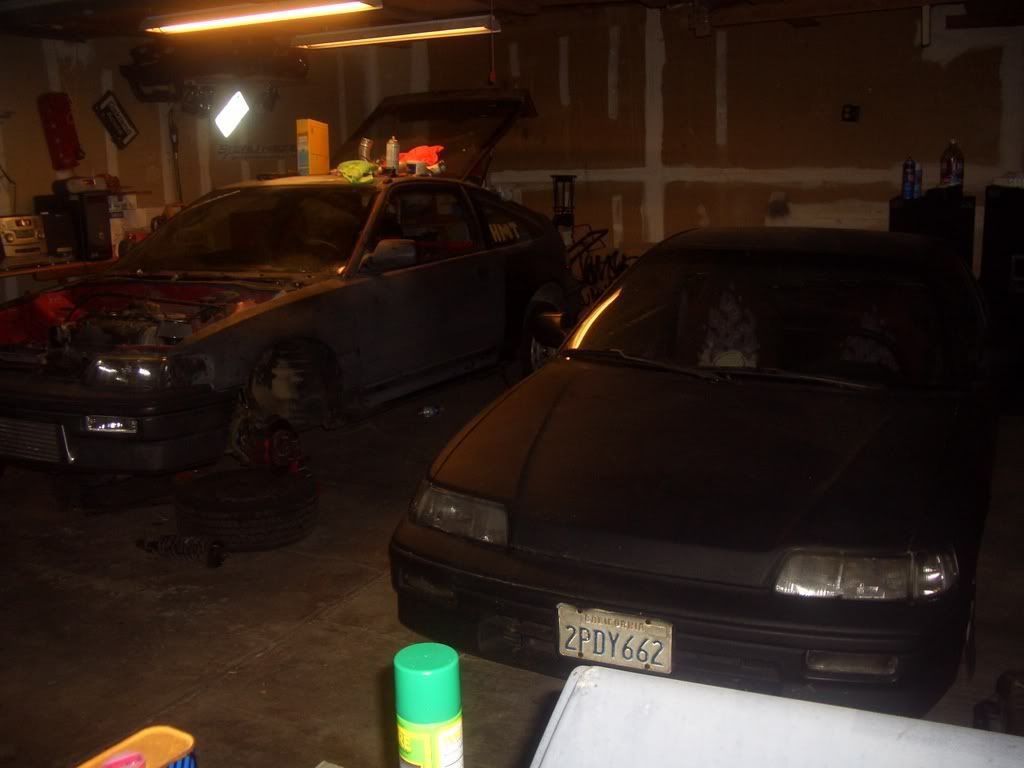

the garage before

98redcavz24 · « **Reply #1 on:** May 30, 2009, 02:56:11 AM »

Looks good. ZC

ApexSilver06MR · « **Reply #2 on:** May 30, 2009, 03:02:06 AM »

Quote from: 98redcavz24 on May 30, 2009, 02:56:11 AM

Looks good. ZC

did you ever get my pm about the keys?

esi42 · « **Reply #3 on:** May 30, 2009, 03:02:58 AM »

Mini me!!!!

realAgentMurdoc · « **Reply #4 on:** May 30, 2009, 03:32:30 AM »

gangsta.... black cover wins

glustic · « **Reply #5 on:** May 30, 2009, 06:35:39 PM »

Word. Shit is ganster. Send me the motor?

You should paint the whole car black. Rattlecan that bitch. And Fuck your stripe

90boostdaccord · « **Reply #6 on:** May 30, 2009, 06:58:51 PM »

black cover. shit is looking good.

turbo1.5 · « **Reply #7 on:** May 30, 2009, 07:27:41 PM »

Nice to see some progress!

Joseph Davis · « **Reply #8 on:** May 30, 2009, 10:01:32 PM »

Towdogg · « **Reply #9 on:** May 30, 2009, 11:18:47 PM »

:yes:

ApexSilver06MR · « **Reply #10 on:** June 03, 2009, 01:24:01 PM »

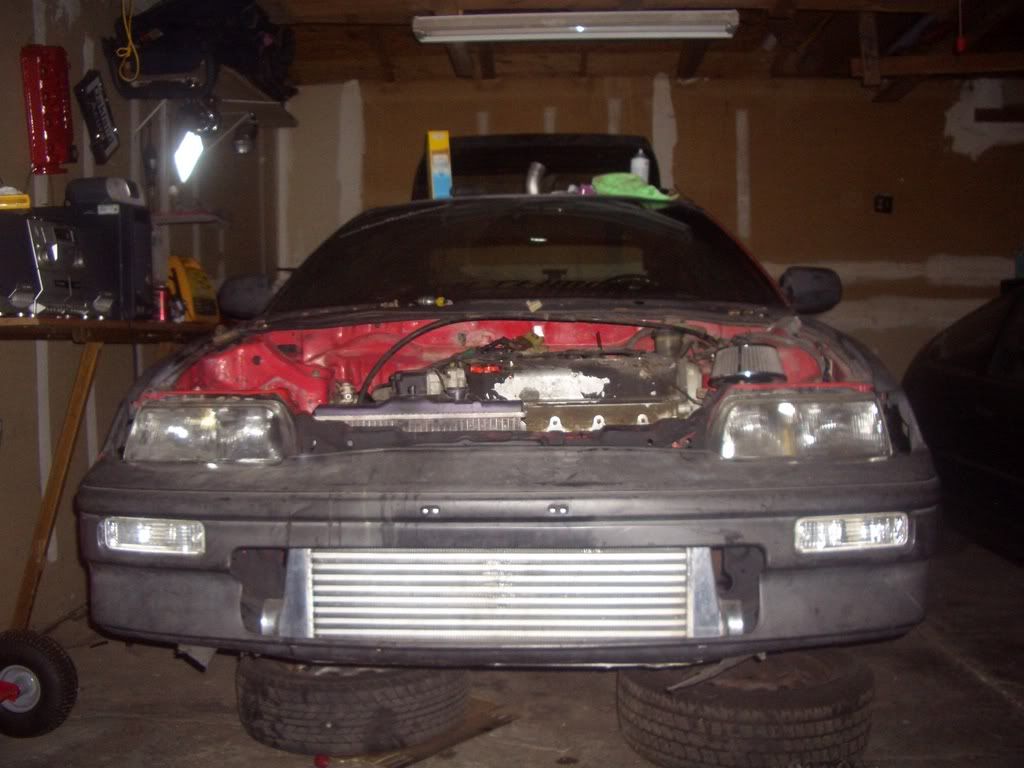

alright motor is in. intake manifold is not on.....im still debating on using the y8 intake mani.

i just need to order a log now and a few things here and there...

AbaZ · « **Reply #11 on:** June 03, 2009, 01:55:27 PM »

A log? thats not very creative

Get a 12 pack and bust out the wirefeed. It usually inspires most

98redcavz24 · « **Reply #12 on:** June 03, 2009, 02:04:42 PM »

Jeff always coming out with something sig-worthy

Yes, I got your pm, I will pm you back today. I have to check the machine

ApexSilver06MR · « **Reply #13 on:** June 03, 2009, 02:18:28 PM »

Quote from: AbaZ on June 03, 2009, 01:55:27 PM

A log? thats not very creative

Get a 12 pack and bust out the wirefeed. It usually inspires most

maybe an elephant trunk

92CXyD · « **Reply #14 on:** June 03, 2009, 02:27:00 PM »

what is your plans for the dizzy on that engine?

I tried using a z6 dizzy and I a hard time getting the ignition to work (look at the front page b/c of the use of vise grips).

;D

I was told to use a y8 dizzy with z6 electronics to make it work.

ApexSilver06MR · « **Reply #15 on:** June 03, 2009, 02:32:49 PM »

Quote from: 92CXyD on June 03, 2009, 02:27:00 PM

what is your plans for the dizzy on that engine?

I tried using a z6 dizzy and I a hard time getting the ignition to work (look at the front page b/c of the use of vise grips). ;D

I was told to use a y8 dizzy with z6 electronics to make it work.

i had an a6 dizzy that i was going to use for it but i needed the money and sold it for $50.

im still debating on converting to obd1. im pretty sure that i will use an a6/b6 dizzy

ApexSilver06MR · « **Reply #16 on:** June 04, 2009, 02:26:20 PM »

the intake mani gasket that came with the kit didnt fit too well and the ports on the gasket were screwy and blocking the ports partially on the head. I just had to order an edelbrock intake mani gasket for a y8 part number 15005 from kragen for $6. looks like a decent piece.

chris · « **Reply #17 on:** June 04, 2009, 03:32:21 PM »

Quote from: 92CXyD on June 03, 2009, 02:27:00 PM

what is your plans for the dizzy on that engine?

I tried using a z6 dizzy and I a hard time getting the ignition to work (look at the front page b/c of the use of vise grips). ;D

I was told to use a y8 dizzy with z6 electronics to make it work.

y8 head uses the 16 valve non vtec sohc bolt pattern

so you need for obd1 a d15b7/d15b8 dost for bolt on action

92CXyD · « **Reply #18 on:** June 04, 2009, 03:35:57 PM »

Thanks Chris M. ;D

What about the cam pulley should I use the y8 stock or y8 adjustable?

chris · « **Reply #19 on:** June 04, 2009, 03:41:24 PM »

If you have a y8 cam use oem cam gear

92CXyD · « **Reply #20 on:** June 04, 2009, 03:41:58 PM »

thanks ;D

chris · « **Reply #21 on:** June 04, 2009, 03:49:00 PM »

Also if you stumble on a y8 dist all you have to do is have a set of obd1 dist plugs and you can repin the obd2 dist to obd1 pins. Internals are the same

Hence why when you convert an obd2 car to obd1 all you need

is

jumper harness
obd1 ecu

jarebear667 · « **Reply #22 on:** June 04, 2009, 04:22:58 PM »

i like your masking skills :yes:

i have the same build going!

glustic · « **Reply #23 on:** June 04, 2009, 08:10:31 PM »

I like how the car has about 50 different colors of paint on it. True

build

ApexSilver06MR · « **Reply #24 on:** June 04, 2009, 08:20:23 PM »

Quote from: glustic on June 04, 2009, 08:10:31 PM

I like how the car has about 50 different colors of paint on it. True build

thanks. we used it as a grafitti wall for a year. the body work will be situated after everything is finished. Paint will be flat black.

isnt the paint under the hood sexy?

glustic · « **Reply #25 on:** June 04, 2009, 08:24:23 PM »

Quote from: ApexSilver06MR on June 04, 2009, 08:20:23 PM

Quote from: glustic on June 04, 2009, 08:10:31 PM
I like how the car has about 50 different colors of paint on it. True build

thanks. we used it as a grafitti wall for a year. the body work will be situated after everything is finished. Paint will be flat black.

isnt the paint under the hood sexy?

Would have been if it didnt look like widebodys dash....

Should have gone black yo. But fuck looks, its all about performance!!

ApexSilver06MR · « **Reply #26 on:** June 04, 2009, 08:27:03 PM »

Quote from: glustic on June 04, 2009, 08:24:23 PM

Quote from: ApexSilver06MR on June 04, 2009, 08:20:23 PM
Quote from: glustic on June 04, 2009, 08:10:31 PM
I like how the car has about 50 different colors of paint on it. True build

thanks. we used it as a grafitti wall for a year. the body work will be situated after everything is finished. Paint will be flat black.

isnt the paint under the hood sexy?

Would have been if it didnt look like widebodys dash....

Should have gone black yo. But fuck looks, its all about performance!!

just cause when people look at your shit...

all they think is, "baby got back" lol

glustic · « **Reply #27 on:** June 04, 2009, 08:43:08 PM »

At least you dont have a huge ass spoiler on it, and some 24" rims.

Joseph Davis · « **Reply #28 on:** June 05, 2009, 09:11:52 AM »

You can fit 24" rims on a Civic??

enikolayev · « **Reply #29 on:** June 05, 2009, 09:32:43 PM »

Good to see progress man! I've been working on my vitara as well. Need tranny and clutch.
