Author Topic: I've Done it now... ( Identify this Flange)  (Read 2280 times)

pitobread

  • Jr. Member
  • **
  • Offline Offline
  • Posts: 34
  • I'm a llama.
I've Done it now... ( Identify this Flange)
« on: August 07, 2013, 12:48:51 AM »
Few months back I went crazy on Yahoo Japan and bought a set of ITB's for what was listed as BP-ZE for absolutely retarded cheap. When they arrived I compared them to a 1.6 manifold I had laying around. looked very similar but bigger... The port spacing was wider so hurrr duurrr I assumed(wrong) that it was 1.8L! I don't have a spare engine/head that is 1.8 so I couldn't at the time check it out.

Doing the turbo thing I made up a plentum for it, fabbed a custom fuel rail and basically made it in to a functional setup. I was going to install it in a few weeks so I grabbed new gaskets. Problemo.

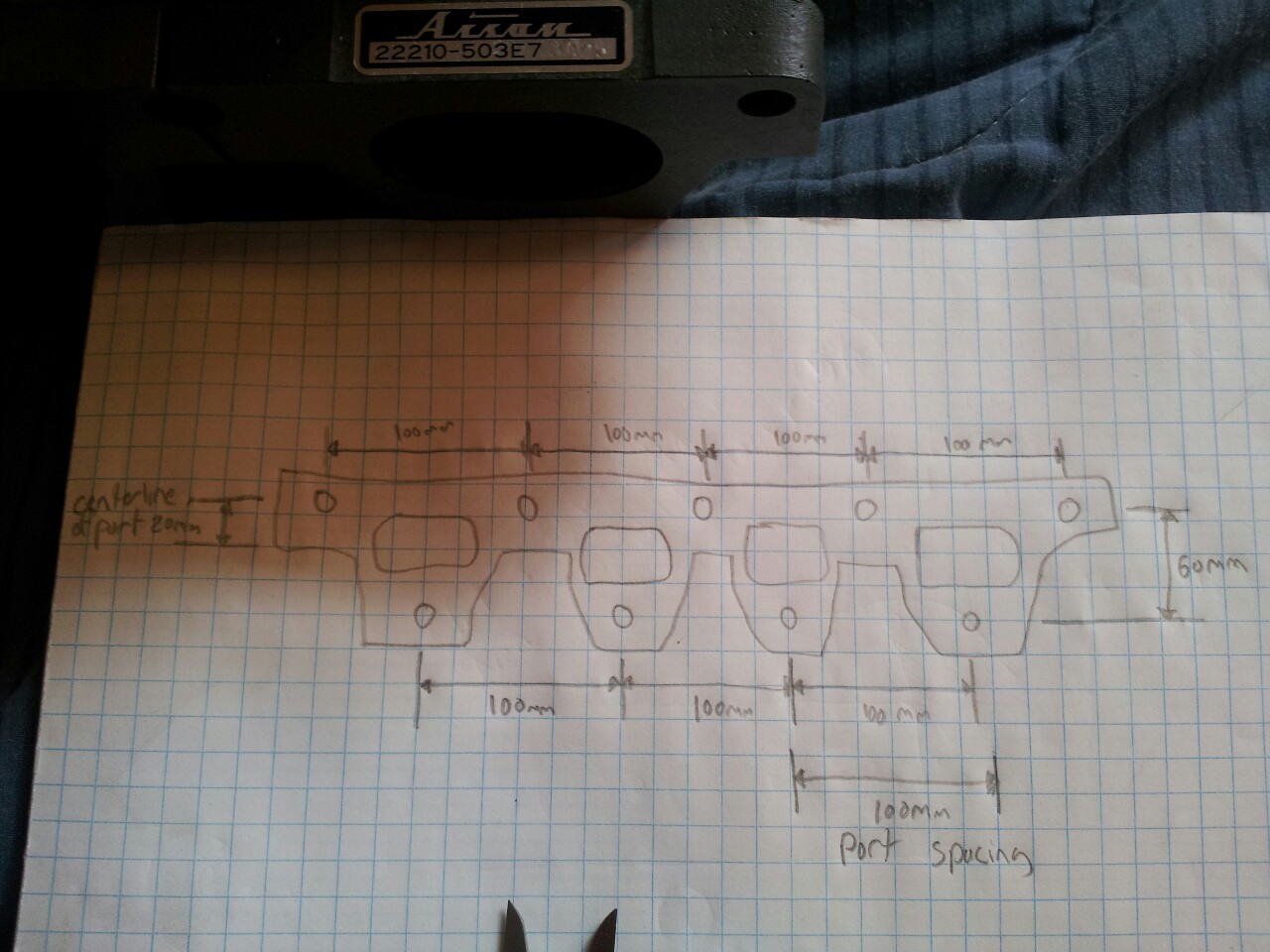

See attached picture. I have made an error, full stop.





So to get my money out of it I need to figure out what it is for exactly.  You nogs are smrt so help me out.
Logged

Rosecitycrx

  • Jr. Member
  • **
  • Offline Offline
  • Posts: 38
Re: I've Done it now... ( Identify this Flange)
« Reply #1 on: August 07, 2013, 04:39:31 PM »
Logged

pitobread

  • Jr. Member
  • **
  • Offline Offline
  • Posts: 34
  • I'm a llama.
Re: I've Done it now... ( Identify this Flange)
« Reply #2 on: August 07, 2013, 08:16:55 PM »

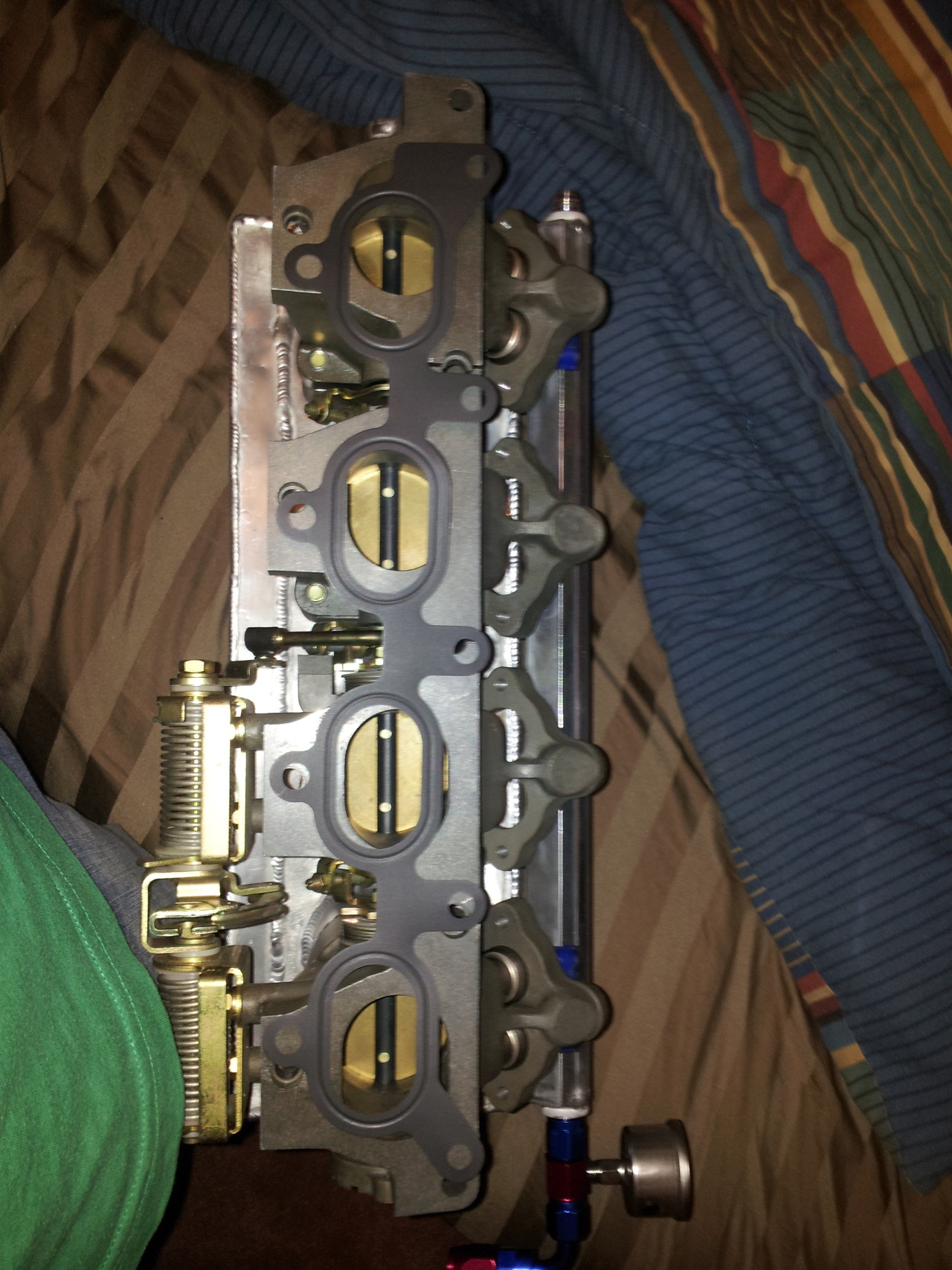

Definitely not AE101.  Everything is symmetrical and AE are not.  Plus the port spacing is huge.  That is the 1.8L gasket chilling on there.
Logged

carkrazed

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3422
  • RHMT
Re: I've Done it now... ( Identify this Flange)
« Reply #3 on: August 07, 2013, 08:57:45 PM »
Looks like a BP-ZE or BP4W which is what we have here.

I'm guessing you picked up a gasket for a pre 99 miata. BP05 style.

Heads were changed on the 99 miata.

Whats this going in? The NB head flows better so you could swap one on.
Logged

pitobread

  • Jr. Member
  • **
  • Offline Offline
  • Posts: 34
  • I'm a llama.
Re: I've Done it now... ( Identify this Flange)
« Reply #4 on: August 07, 2013, 09:13:58 PM »
I have both a 96 and a 99 Gasket here, both too narrow.  But the 99 fits slightly better as in the port height is correct.  Still way off though.

It looks like a BP tho !@#$%
Logged

carkrazed

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3422
  • RHMT
Re: I've Done it now... ( Identify this Flange)
« Reply #5 on: August 07, 2013, 09:34:46 PM »
hmmmm......what a perplexing perplexity

Stand by
Logged

carkrazed

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3422
  • RHMT
Re: I've Done it now... ( Identify this Flange)
« Reply #6 on: August 07, 2013, 10:02:50 PM »
Wait a sec...........is that a rail and injectors mounted on the throttle bodies?
Logged

pitobread

  • Jr. Member
  • **
  • Offline Offline
  • Posts: 34
  • I'm a llama.
Re: I've Done it now... ( Identify this Flange)
« Reply #7 on: August 07, 2013, 10:06:52 PM »
Yes.  Dual injectors too!  :mexi:

Logged

carkrazed

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3422
  • RHMT
Re: I've Done it now... ( Identify this Flange)
« Reply #8 on: August 07, 2013, 10:17:03 PM »
Well.......seeing as how Mazda B series engines have the injector bosses in the head, what made you think this would work on one?
Logged

pitobread

  • Jr. Member
  • **
  • Offline Offline
  • Posts: 34
  • I'm a llama.
Re: I've Done it now... ( Identify this Flange)
« Reply #9 on: August 07, 2013, 10:18:38 PM »
Lots of ITB setups move the injector closer to the throttle blade and use plugs to button up the head, Fuji/OER for one example.
Logged

carkrazed

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3422
  • RHMT
Re: I've Done it now... ( Identify this Flange)
« Reply #10 on: August 07, 2013, 10:24:10 PM »
Interesting. Never seen any miata setups like that.
Logged

Joseph Davis

  • Verbal Assault Technician
  • RHMT Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 34733
  • Eugenics prevents retards like widebody93
    • TURBO THIS
Re: I've Done it now... ( Identify this Flange)
« Reply #11 on: August 08, 2013, 10:17:21 AM »
Get Weir in here.  He might recognize... he is dah flange masta  O0
Logged
