Author Topic: ef strut rod/radius rod too long? nsfw  (Read 6546 times)

t_cel_t

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3147
ef strut rod/radius rod too long? nsfw
« on: June 20, 2009, 07:30:03 PM »

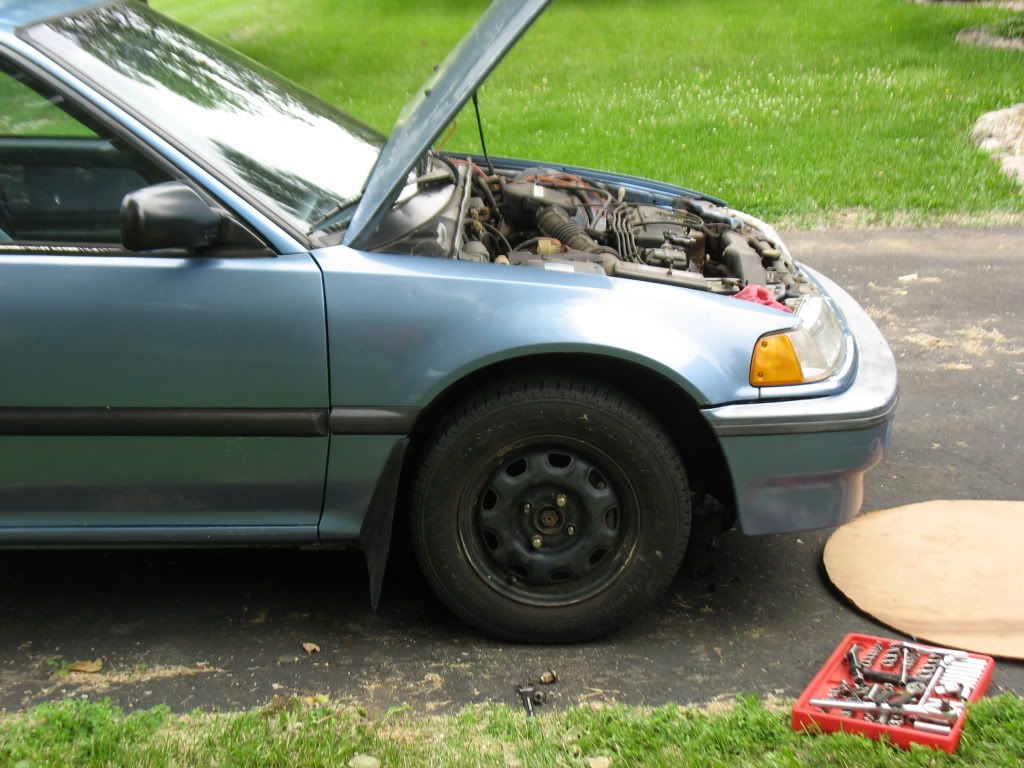

this is fucking pissing me off it seems like the rod is like an inch too long causing the caster of the wheel to be like an inch back. the wheels looks like it hit the rear of the fender at one point and maybe because of the the rod breaking and then it was replaced with a longer one?

if i dont figure this out im getting the grinder out and making it fit correctly

anyone know how long the rod should be for a 91 hatch?






milfs and redheads






Logged
malone labe

I think all cop cars need to have turbo. nbspnbsp Then they would understand the necessity of putting your foot down and how uncontrollable the urge is to fucking rail on that shit.

ApexSilver06MR

  • RealHomeMadeTurbo's "pee wee"
  • Global Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 9872
  • RealHomeMadeTurbo Resident Cocksmith!
Re: ef strut rod/radius rod too long? nsfw
« Reply #1 on: June 20, 2009, 07:40:24 PM »
You may have 90-93 integra bars. I believe they are longer than the ef's
Logged
pee wee for the size of my p..........

Nor*Cal Spoolin'#039#039 Nig Nog

t_cel_t

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3147
Re: ef strut rod/radius rod too long? nsfw
« Reply #2 on: June 20, 2009, 07:53:50 PM »
Quote from: ApexSilver06MR on June 20, 2009, 07:40:24 PM
You may have 90-93 integra bars. I believe they are longer than the ef's
thanks, at least that somewhat confirms my belief that there are bars that are longer and its possibly the wrong one.
Logged
malone labe

I think all cop cars need to have turbo. nbspnbsp Then they would understand the necessity of putting your foot down and how uncontrollable the urge is to fucking rail on that shit.

Corey

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3030
Re: ef strut rod/radius rod too long? nsfw
« Reply #3 on: June 20, 2009, 11:19:11 PM »
is it curved at all on the end where it bolts to the control arm? it looks like it is in that first pic and i know it shouldnt be.
Logged

2point2

  • Jr. Member
  • **
  • Offline Offline
  • Posts: 34
Re: ef strut rod/radius rod too long? nsfw
« Reply #4 on: June 20, 2009, 11:58:49 PM »

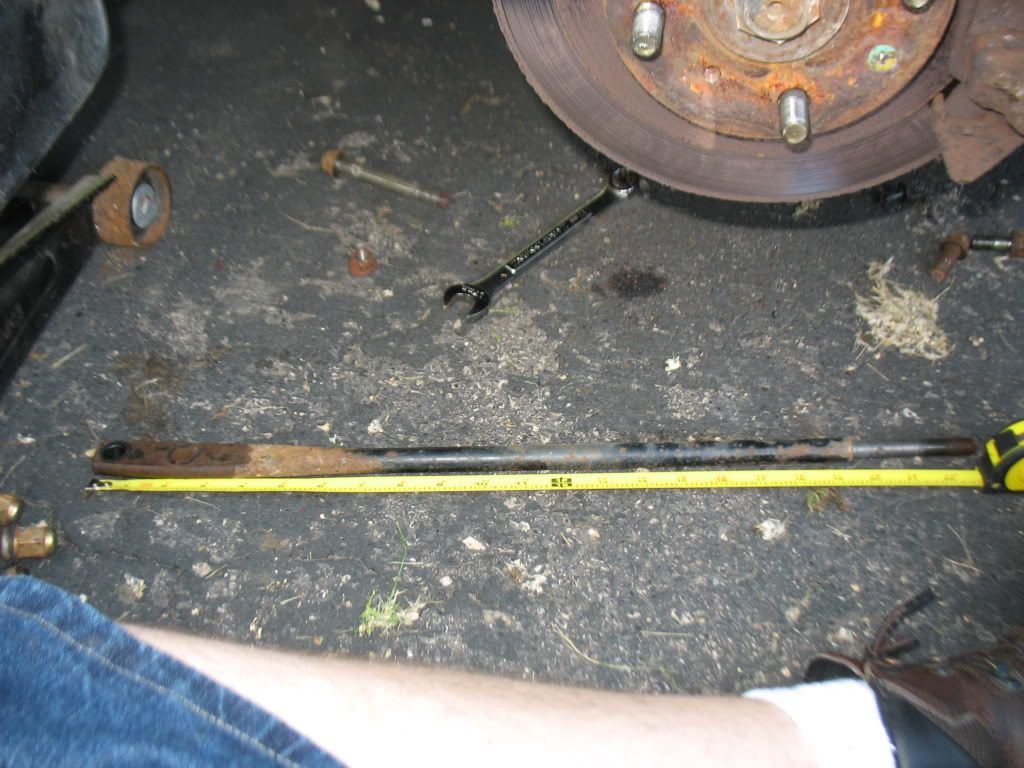

look right.. my CRX rods are a cunt hair shy of 22 7/8 tip to tip and 19.5" from tip to the machined bit.
Logged

Joseph Davis

  • Verbal Assault Technician
  • RHMT Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 34733
  • Eugenics prevents retards like widebody93
    • TURBO THIS
Re: ef strut rod/radius rod too long? nsfw
« Reply #5 on: June 21, 2009, 12:08:26 AM »
Measure the spacing of the bolts holding the rods to the LCAs.  Or take a picture.  DA units are further apart.
Logged

t_cel_t

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3147
Re: ef strut rod/radius rod too long? nsfw
« Reply #6 on: June 21, 2009, 01:59:23 AM »
Quote from: Corey on June 20, 2009, 11:19:11 PM
is it curved at all on the end where it bolts to the control arm? it looks like it is in that first pic and i know it shouldnt be.
it is just slightly, but the wheel is sitting farther back than normal. if it was bent then the wheel would be closer to the front of the car.

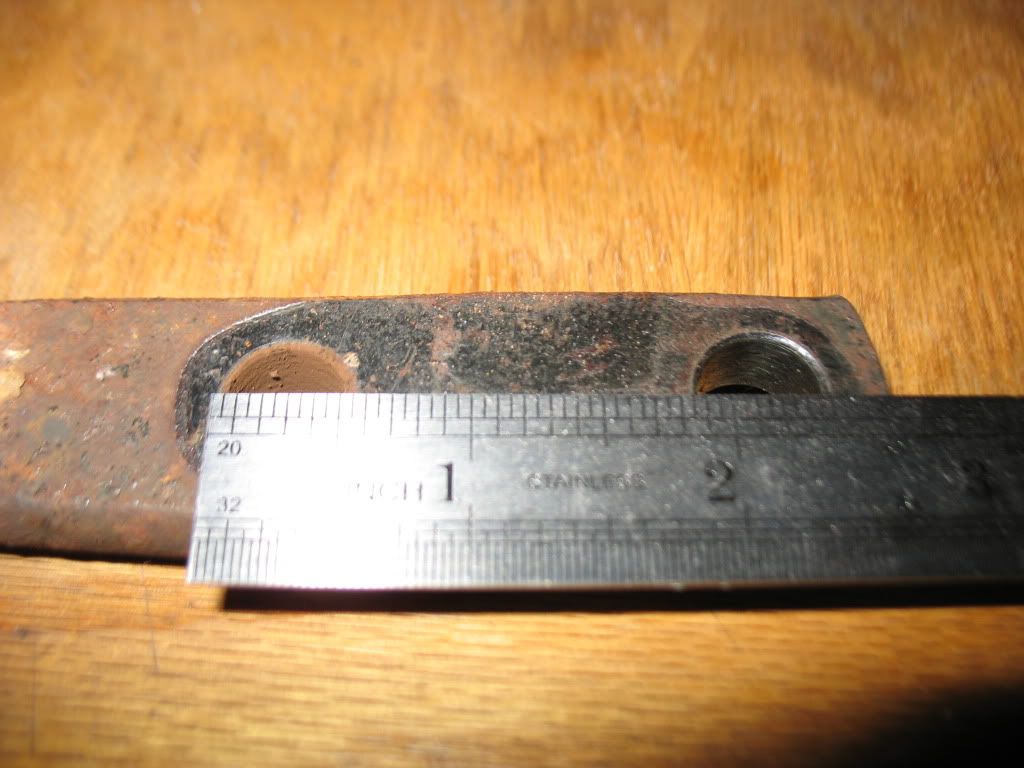

jd, spacing is 1.85 inches
Logged
malone labe

I think all cop cars need to have turbo. nbspnbsp Then they would understand the necessity of putting your foot down and how uncontrollable the urge is to fucking rail on that shit.

Joseph Davis

  • Verbal Assault Technician
  • RHMT Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 34733
  • Eugenics prevents retards like widebody93
    • TURBO THIS
Re: ef strut rod/radius rod too long? nsfw
« Reply #7 on: June 21, 2009, 02:07:34 AM »
Cool, I'll measure my car in the AM, if someone else hasn't come along with the answer before I have it.

FYI, I used to be able to visually tell the difference, but I haven't done much suspension work in recent years.  I'm becoming useless in some respects.
Logged

t_cel_t

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3147
Re: ef strut rod/radius rod too long? nsfw
« Reply #8 on: June 21, 2009, 03:06:47 AM »
ok check this, these are the repair guides off autozone.

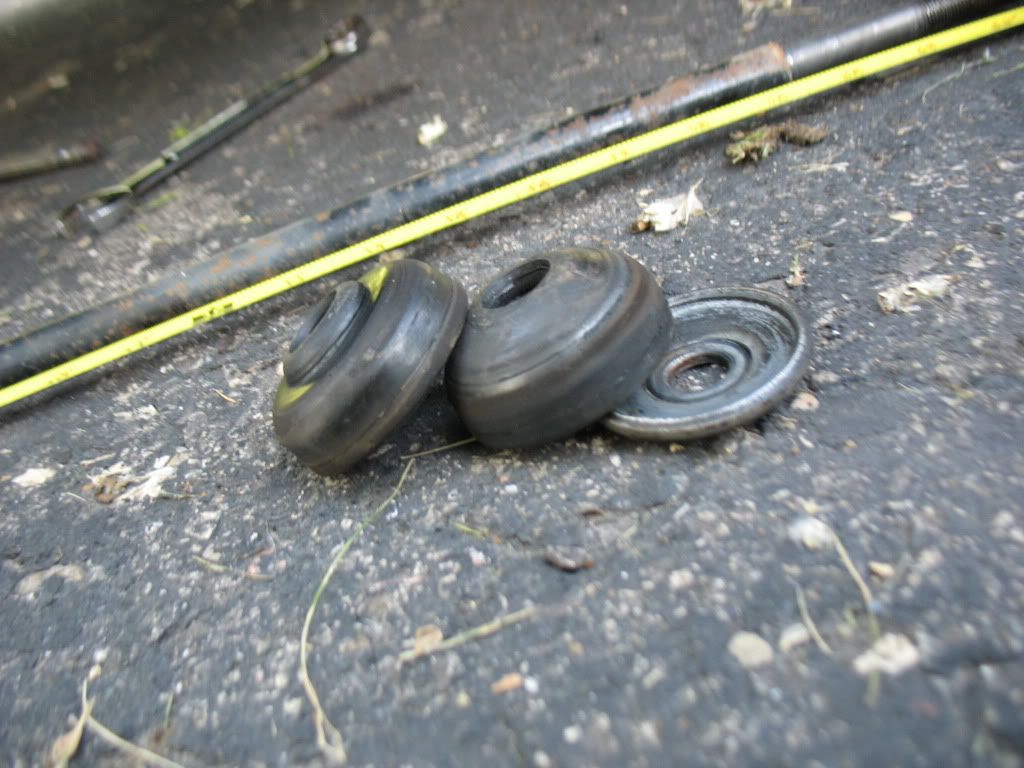

they show different setups for the bushings on the rod, one uses 1 and one uses 2, there is currently 2 bushings on my car exactly like the 1st pic, although if it where setup like the 2nd pic i would get back that inch. but all the bushing kits i see have the 4 bushing(2 each side), so i have no fucking clue

Logged
malone labe

I think all cop cars need to have turbo. nbspnbsp Then they would understand the necessity of putting your foot down and how uncontrollable the urge is to fucking rail on that shit.

Joseph Davis

  • Verbal Assault Technician
  • RHMT Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 34733
  • Eugenics prevents retards like widebody93
    • TURBO THIS
Re: ef strut rod/radius rod too long? nsfw
« Reply #9 on: June 21, 2009, 03:18:36 AM »
You shouldn't trust chinese autopart vendors too far.  Both use two bushings.
Logged

t_cel_t

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3147
Re: ef strut rod/radius rod too long? nsfw
« Reply #10 on: June 21, 2009, 03:28:26 AM »

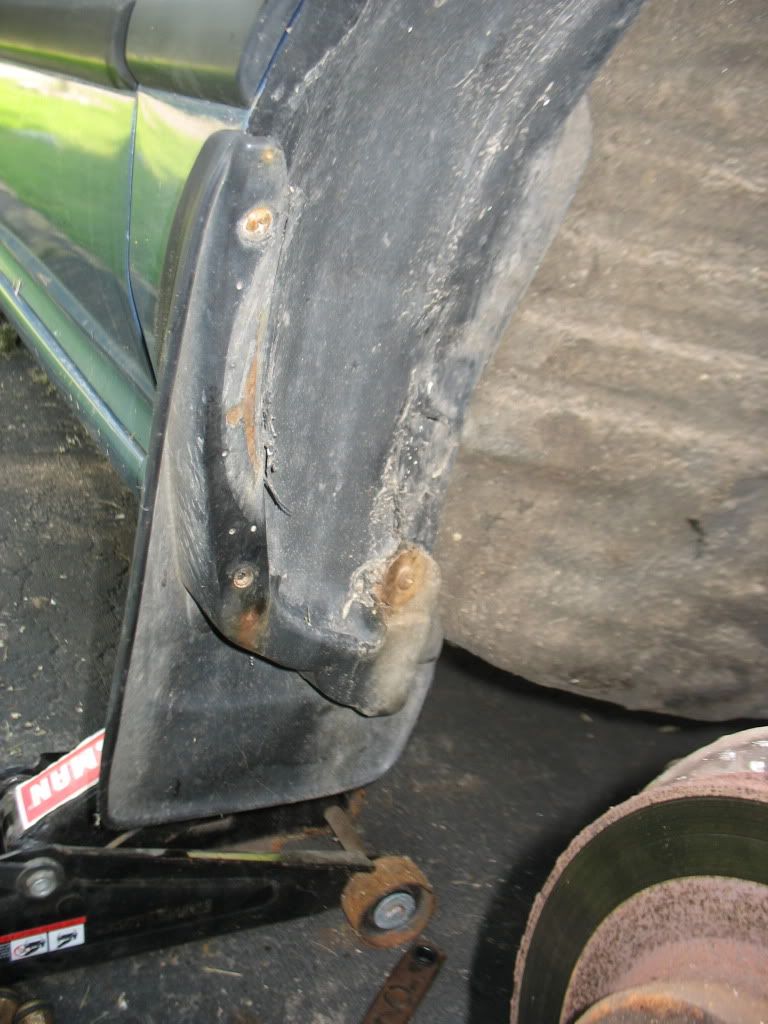

yeah i just went back outside and checked, the wheel side of the mounting hole is cupped for the bushing on both sides
Logged
malone labe

I think all cop cars need to have turbo. nbspnbsp Then they would understand the necessity of putting your foot down and how uncontrollable the urge is to fucking rail on that shit.

turbob16hatch

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 2080
Re: ef strut rod/radius rod too long? nsfw
« Reply #11 on: June 21, 2009, 06:59:29 AM »
your car was never in an accident? also would a different upper a arm cause this?
Logged

spoonfedcrx

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 301
Re: ef strut rod/radius rod too long? nsfw
« Reply #12 on: June 21, 2009, 12:53:18 PM »
Is it just the one side that is "too long"?  Measure the other side and compare, if they are the same then start looking at your lower control arms, front crossmember etc for something out of whack.
Logged

Joseph Davis

  • Verbal Assault Technician
  • RHMT Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 34733
  • Eugenics prevents retards like widebody93
    • TURBO THIS
Re: ef strut rod/radius rod too long? nsfw
« Reply #13 on: June 21, 2009, 01:03:37 PM »
Too lazy to walk outside to my car and measure just yet.  Sorry!
Logged

t_cel_t

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3147
Re: ef strut rod/radius rod too long? nsfw
« Reply #14 on: June 21, 2009, 04:00:36 PM »
ok i tore the other side apart, made like 10 different measurements and everything seems to check out, cant find anything bent including the cross members.

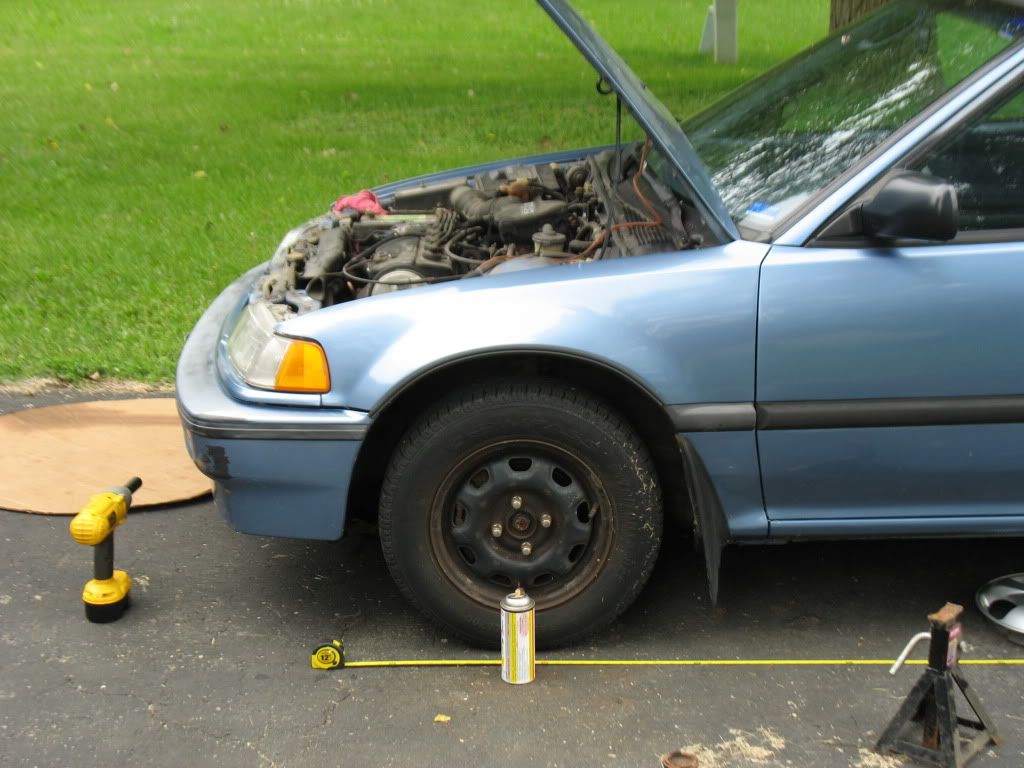

measured the wheelbase, on drivers side 98.5in and pass side 97.75in, wikipedia says its 98.4in. caster angles on the struts appear identical, could it have a the wrong hub?


Logged
malone labe

I think all cop cars need to have turbo. nbspnbsp Then they would understand the necessity of putting your foot down and how uncontrollable the urge is to fucking rail on that shit.

turbob16hatch

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 2080
Re: ef strut rod/radius rod too long? nsfw
« Reply #15 on: June 21, 2009, 06:38:38 PM »
check the upper control arm? is the spindle straight up and down or leaning back ?
Logged

Passenger

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 1954
Re: ef strut rod/radius rod too long? nsfw
« Reply #16 on: June 21, 2009, 06:45:33 PM »
I can't help, but who is the bitch in you avatar?
Logged

spoonfedcrx

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 301
Re: ef strut rod/radius rod too long? nsfw
« Reply #17 on: June 21, 2009, 08:49:32 PM »
Id say something is bent,  u check the control arms yet?
Logged

Joseph Davis

  • Verbal Assault Technician
  • RHMT Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 34733
  • Eugenics prevents retards like widebody93
    • TURBO THIS
Re: ef strut rod/radius rod too long? nsfw
« Reply #18 on: June 21, 2009, 09:53:00 PM »
Check the inner LCA mount, chances are you will find a small kink in the crossmember.
Logged

turbob16hatch

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 2080
Re: ef strut rod/radius rod too long? nsfw
« Reply #19 on: June 22, 2009, 08:50:54 AM »
Quote from: spoonfedcrx on June 21, 2009, 08:49:32 PM
Id say something is bent,  u check the control arms yet?
Logged

t_cel_t

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3147
Re: ef strut rod/radius rod too long? nsfw
« Reply #20 on: June 23, 2009, 05:39:45 AM »
control arms are totally strait, both sides look identical, im going to attempt to drop the cross members today if i dont die(its hotter then a nigger in florida)
imma going to bet that there is some tiny wrinkle on the top sides of one of the crossmembers that i havent felt, the bottoms are totally mint.
Logged
malone labe

I think all cop cars need to have turbo. nbspnbsp Then they would understand the necessity of putting your foot down and how uncontrollable the urge is to fucking rail on that shit.

92CXyD

  • Twincharged Smeghead
  • Global Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 6775
  • I look around and all I see is Smegheads
Re: ef strut rod/radius rod too long? nsfw
« Reply #21 on: June 23, 2009, 12:36:10 PM »
Any more pict of the redhead  ;D
« Last Edit: June 24, 2009, 07:22:13 AM by 92CXyD »
Logged

t_cel_t

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3147
Re: ef strut rod/radius rod too long? nsfw
« Reply #22 on: June 23, 2009, 11:00:29 PM »
Quote from: 92CXyD on June 23, 2009, 12:36:10 PM
Anty more pict of the redhead  ;D
first one or second one?
Logged
malone labe

I think all cop cars need to have turbo. nbspnbsp Then they would understand the necessity of putting your foot down and how uncontrollable the urge is to fucking rail on that shit.

crttaz

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 1831
  • Old Wise One
Re: ef strut rod/radius rod too long? nsfw
« Reply #23 on: June 24, 2009, 02:14:07 AM »
bent right LCA.......
Logged
OG before the OG'#039#039s

92CXyD

  • Twincharged Smeghead
  • Global Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 6775
  • I look around and all I see is Smegheads
Re: ef strut rod/radius rod too long? nsfw
« Reply #24 on: June 24, 2009, 07:22:39 AM »
Quote from: t_cel_t on June 23, 2009, 11:00:29 PM
Quote from: 92CXyD on June 23, 2009, 12:36:10 PM
Anty more pict of the redhead  ;D
first one or second one?

Both  ;D
Logged

t_cel_t

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3147
Re: ef strut rod/radius rod too long? nsfw
« Reply #25 on: June 24, 2009, 05:27:26 PM »
Quote from: crttaz on June 24, 2009, 02:14:07 AM
bent right LCA.......

i toke all the shit off and compared it to the drivers side, nothing was bent
im going to use my buddies lift later. i still cant see anything bent, frame is strait as all the body lines and panel gaps are perfect
Logged
malone labe

I think all cop cars need to have turbo. nbspnbsp Then they would understand the necessity of putting your foot down and how uncontrollable the urge is to fucking rail on that shit.

t_cel_t

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3147
Re: ef strut rod/radius rod too long? nsfw
« Reply #26 on: June 24, 2009, 10:09:05 PM »
thanks for the suggestions, i still cant figure this shit out







Logged
malone labe

I think all cop cars need to have turbo. nbspnbsp Then they would understand the necessity of putting your foot down and how uncontrollable the urge is to fucking rail on that shit.

t_cel_t

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3147
Re: ef strut rod/radius rod too long? nsfw
« Reply #27 on: July 01, 2009, 05:44:50 PM »
fuck it, bought a traction bar and shes all good.
all it needs is an alignment and then i start the process of forcing some more engine food down her throat  :evil:

also is $125 a good price for a d15 and tranny? i think so
Logged
malone labe

I think all cop cars need to have turbo. nbspnbsp Then they would understand the necessity of putting your foot down and how uncontrollable the urge is to fucking rail on that shit.

turbob16hatch

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 2080
Re: ef strut rod/radius rod too long? nsfw
« Reply #28 on: July 03, 2009, 02:10:33 AM »
no they should be free
Logged

t_cel_t

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3147
Re: ef strut rod/radius rod too long? nsfw
« Reply #29 on: July 08, 2009, 09:37:20 PM »
apon further inspection there is a tiny dent on the underside of the crossmember, fucking bullshit is invisible
yeah motors should be free, anyway the fucker sold it
Logged
