Author Topic: Alternator wiring 4 to 3 wire..  (Read 5373 times)

walter

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 2931
Alternator wiring 4 to 3 wire..
« on: May 12, 2015, 08:14:35 PM »
Hi, anyone had wiring diagram for convert OBd1 alternetor 4 wire plug to OBD2 3 wire?



Logged

HiProfile

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 4564
  • Injector Kingpin
Re: Alternator wiring 4 to 3 wire..
« Reply #1 on: May 16, 2015, 03:33:14 AM »
I didn't know a 3-wire OBD2 existed. All our alternators in the USA have 4 wires since the 90's, only 80's stuff is 3-wire. What color wires do you have?

Logged
they mspainted dildoes in my mom'#039#039s hand, in a picture of her in a hospital bed. -JD
dem gurls need some boobz! -Engloid

walter

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 2931
Re: Alternator wiring 4 to 3 wire..
« Reply #2 on: May 18, 2015, 09:32:01 PM »

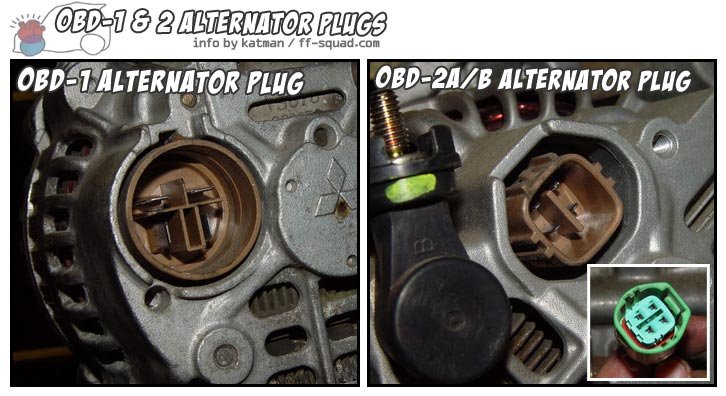

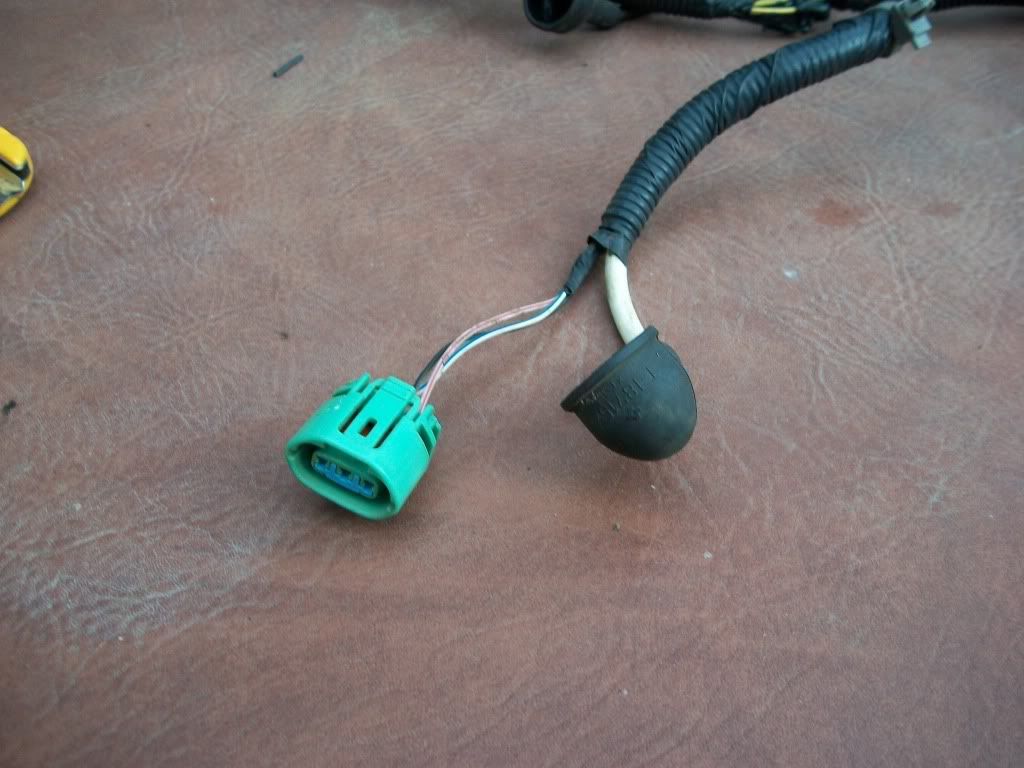

this is the plug 3 wire.



found the solution, i will test if that works.



looks like one wire isnt necesary (ELD), need to be disable on ecu.
Logged
