Author Topic: Resistor Box Questions for Civic DX, Precision 780's, Neptune  (Read 6928 times)

imburne

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3983
    • TurboByHOLSET
Resistor Box Questions for Civic DX, Precision 780's, Neptune
« on: November 11, 2011, 03:07:28 AM »
Before I go frying something out following a random writeup, I figure I should ask. How can I wire up this resistor box with these mods in mind? Thanks!

99 Civic DX

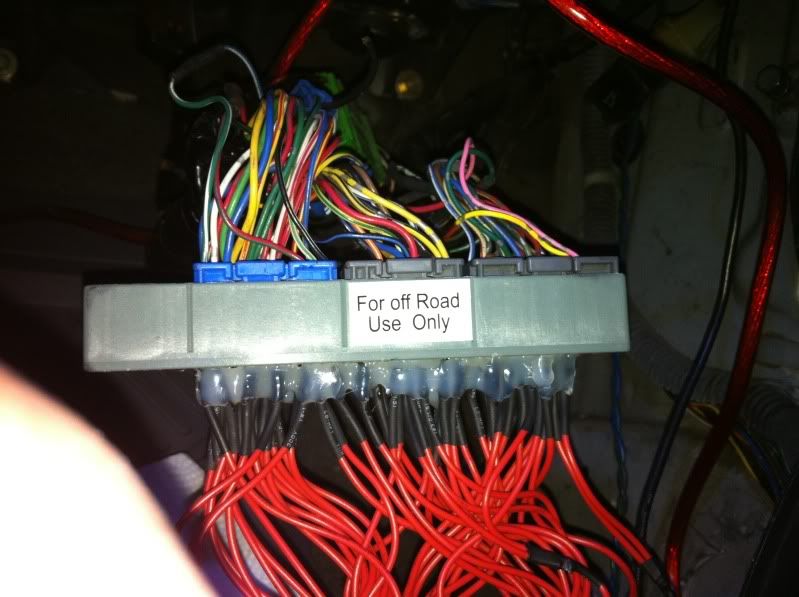

Conversion Harness (and I dont remember if it was obdII to obdIIa or vice versa, etc)

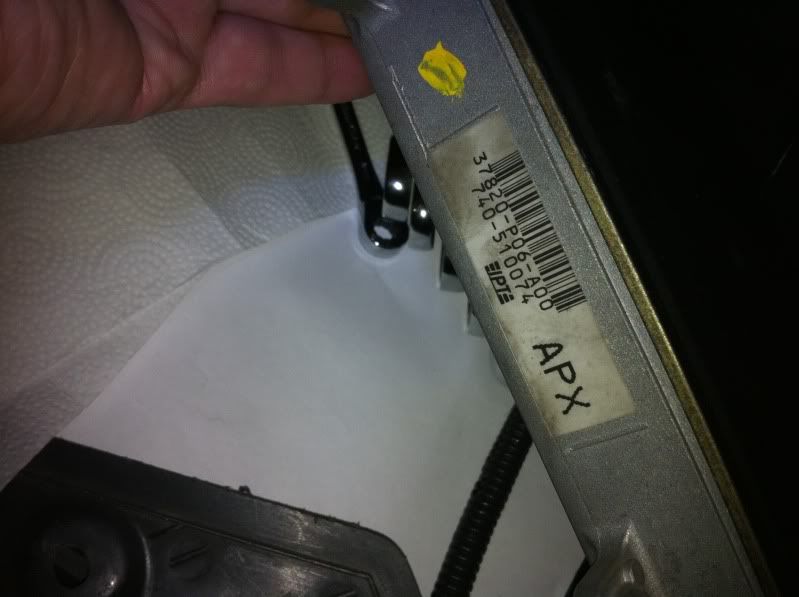

Neptune Ecu p28 converted
Precision 780cc Injectors

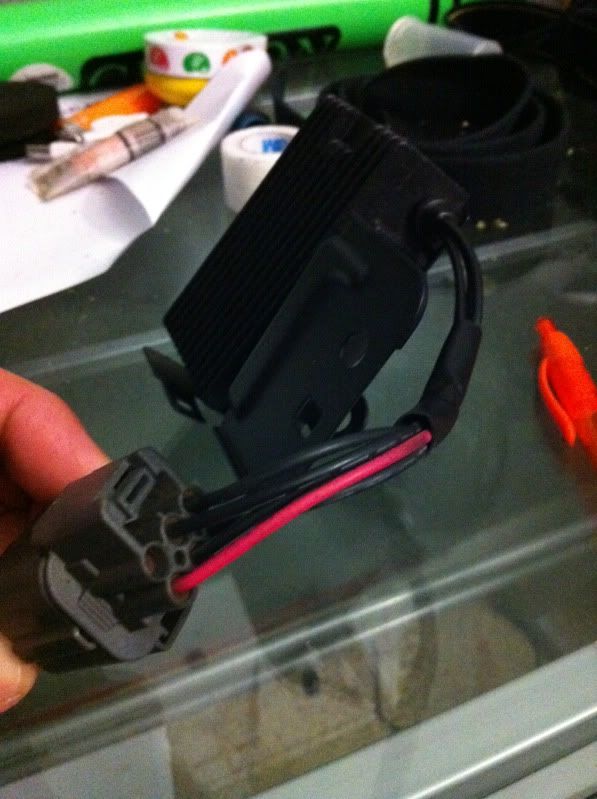

Resistor Box




« Last Edit: November 11, 2011, 07:57:28 AM by imburne »
Logged

Joseph Davis

  • Verbal Assault Technician
  • Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 34733
  • Eugenics prevents retards like widebody93
    • TURBO THIS
Re: Resistor Box Questions for Civic DX, Precision 780's, Neptune
« Reply #1 on: November 11, 2011, 09:05:35 AM »
Power on the red wire, run the black wires to individual injectors.
Logged

Tim

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 2632
Re: Resistor Box Questions for Civic DX, Precision 780's, Neptune
« Reply #2 on: November 11, 2011, 11:53:39 AM »
I just did this to a friends 96 obd2a so I don't know if it is the same as yours being a 99.

Under the intake manifold there is a 'dead man's plug' that supplies 12V+ to all of your injectors, as well as some other components.
Remove the blank plastic plug and find a junkyard replacement with a short length of wire.
Unpin your resistor box.
With a volt meter find out which 4 pins go to your injectors and unpin them from your new junkyard plug, repin them with your 4 black resistor box wires.
twist and solder the remaining JY wire leads to the red wire from your resistor box.
plug your new plug with resistor box in place of the 'dead man's plug'

Sorry its hard to describe in text for me.
I'll see if I can get some pics or at least an ms paint to make it more clear, but it will be plug and play with no stock harness damage.  You can go back to stock, or swap high imp. injectors in without needing to cut or solder.
Logged

HiProfile

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 4564
  • Injector Kingpin
Re: Resistor Box Questions for Civic DX, Precision 780's, Neptune
« Reply #3 on: November 11, 2011, 01:05:46 PM »
You could do it a better way.

Buy some bosch or denso's that are high-z and not fuck with the box. Precision injectors are delphi, which is old tech atm. Even gen1 deka's are better.
Logged
they mspainted dildoes in my mom'#039#039s hand, in a picture of her in a hospital bed. -JD
dem gurls need some boobz! -Engloid

Joseph Davis

  • Verbal Assault Technician
  • Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 34733
  • Eugenics prevents retards like widebody93
    • TURBO THIS
Re: Resistor Box Questions for Civic DX, Precision 780's, Neptune
« Reply #4 on: November 11, 2011, 01:18:15 PM »
Yes, but that would be quality over rigjob, Jeffery.
Logged

imburne

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3983
    • TurboByHOLSET
Re: Resistor Box Questions for Civic DX, Precision 780's, Neptune
« Reply #5 on: November 11, 2011, 05:27:39 PM »
Quote from: Joseph Davis on November 11, 2011, 09:05:35 AM
Power on the red wire, run the black wires to individual injectors.

Yes, the easy way. So literally connect the black wires to the ground of the injectors? I have done the inline resistors on 450s but since people tie this into the harness its confusing me probably more than it has to.

Moar info on this sir



Logged

imburne

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3983
    • TurboByHOLSET
Re: Resistor Box Questions for Civic DX, Precision 780's, Neptune
« Reply #6 on: November 11, 2011, 09:51:30 PM »
Oi, I need some halp.
Logged

HiProfile

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 4564
  • Injector Kingpin
Re: Resistor Box Questions for Civic DX, Precision 780's, Neptune
« Reply #7 on: November 11, 2011, 11:05:38 PM »
Think of this as resistors with pigtails, where the "dead end" possitive side are already twisted together. There has to be a million writeups on it on the net.

I'm starting to understand why the website keeps shitting a brick. :P




Here's one that shows the wires. It's the four yellow wires on the plug near your clutch reservoir.

http://honda-tech.com/showthread.php?t=2266133
Logged
they mspainted dildoes in my mom'#039#039s hand, in a picture of her in a hospital bed. -JD
dem gurls need some boobz! -Engloid

crazy_ivan

  • Jr. Member
  • **
  • Offline Offline
  • Posts: 37
Re: Resistor Box Questions for Civic DX, Precision 780's, Neptune
« Reply #8 on: November 12, 2011, 12:18:27 AM »
3rd post on that link shows it perfectly.
A dizzy plug off an 90-00 accord works nicely...
Logged

imburne

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3983
    • TurboByHOLSET
Re: Resistor Box Questions for Civic DX, Precision 780's, Neptune
« Reply #9 on: November 12, 2011, 12:32:29 AM »
Thanks everyone for the input. Its been a few years since I have done any modifications on cars besides general maintenence so I am beyond rusty. Its coming back to me though slowly though.

Will have pics up in about a hour when I am done to see if I wired it right. Thanks again
Logged

imburne

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3983
    • TurboByHOLSET
Re: Resistor Box Questions for Civic DX, Precision 780's, Neptune
« Reply #10 on: November 12, 2011, 02:10:31 AM »
Logged

t_cel_t

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3147
Re: Resistor Box Questions for Civic DX, Precision 780's, Neptune
« Reply #11 on: November 12, 2011, 03:10:58 AM »
extension cords injector wires O0
Logged
malone labe

I think all cop cars need to have turbo. nbspnbsp Then they would understand the necessity of putting your foot down and how uncontrollable the urge is to fucking rail on that shit.

snm95ls

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3662
Re: Resistor Box Questions for Civic DX, Precision 780's, Neptune
« Reply #12 on: November 12, 2011, 12:18:16 PM »
That wiring makes baby Jesus cry.

 :-\
Logged

imburne

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3983
    • TurboByHOLSET
Re: Resistor Box Questions for Civic DX, Precision 780's, Neptune
« Reply #13 on: November 12, 2011, 07:03:38 PM »
Will it blend is the question
Logged

HiProfile

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 4564
  • Injector Kingpin
Re: Resistor Box Questions for Civic DX, Precision 780's, Neptune
« Reply #14 on: November 14, 2011, 01:39:18 AM »
Quote from: t_cel_t on November 12, 2011, 03:10:58 AM
extension cords injector wires O0

Last owner of my del sol did that for rear speakers. I had to wire the stockers back in. :-X
Logged
they mspainted dildoes in my mom'#039#039s hand, in a picture of her in a hospital bed. -JD
dem gurls need some boobz! -Engloid
