Topic: cheap but awesome vitara d15b2 build (300+whp) (Read 21780 times)

danz · « **on:** August 11, 2012, 02:58:46 AM »

so a lot of you dont make it over to d-series.org so i figured id post this shit up here so you all could check it out

plan is a non-vtec d15b2 setup with a pm3 head. and a colt cam i got for free in a motor i got for free. turned out to be overbored to 76mm so i couldnt use it (lol what are the odds)

ebay turbo. home made mild steel manifold. mig welded. mild steel charge piping. dsm BOV. hopefully some hiprofile injectors. all the shit that makes shit awesome. ebay tial knockoff WG. etc etc.

got some forged rods from FJT for testing, and some vitara pistons from a homie on honda-tech of all places. NovisSomethingOrother. tricky name, but nice guy.

rods in

bosch fuel pump in tank like a muhh

DIY port job

reworked CC

.095 milled off the head. should give me about 9:1 CR with vitaras on the D15 setup with pm3 head.

collector jig for manifold collectors. took 15 minutes to make.

my friend darin and i (farmyard crew what haha) got busy and started tacking shit up. i wanted to use a full rad, fuck overheating in traffic. that was my biggest problem with my old holset 10 sec setup.

so i made a mini ram

gangster oil drain flange/fitting i made so the oil drain would work. basically slit the fuck outa some 5/8ths .065 wall ERW and pinched it in a vice then laced it with weld to seal it up. worked like a champ.

and a fully assembled shot, with the RT4WD oil cooler installed as well

gonna use the ebay turbo and see how it goes. waiting on the head back from the machine shop, needs some new exhaust valves so ill get them to the shop and ill get the head back and toss it all together

then its waiting on hiprofile to send me some injectors so i can start tuning and helping him make some loot. haha

PhilStubbs · « **Reply #1 on:** August 11, 2012, 08:40:37 AM »

thats awesome. you will get lots of life out of that ebay turbo if you stay 10psi or less. since you want 300whp i know you arent. you will get 3-4 months out of that turbo if you drive it daily

highroller54 · « **Reply #2 on:** August 11, 2012, 11:23:15 AM »

looking good poopsie

ratcityrex · « **Reply #3 on:** August 11, 2012, 01:14:50 PM »

FUCKING WINNING!

crxvtec91 · « **Reply #4 on:** August 13, 2012, 10:00:16 AM »

Fuck yea, I want to see this thing RIP!

BTW I just realized that fuel pump is bigger then my walbro 400!

HiProfile · « **Reply #5 on:** August 13, 2012, 08:20:49 PM »

Hey Danz:

That is all.

snm95ls · « **Reply #6 on:** August 14, 2012, 12:28:59 AM »

Quote from: HiProfile on August 13, 2012, 08:20:49 PM

Hey Danz:

That is all.

Well played. lol.

crxvtec91 · « **Reply #7 on:** August 14, 2012, 12:24:07 PM »

Quote from: snm95ls on August 14, 2012, 12:28:59 AM

Quote from: HiProfile on August 13, 2012, 08:20:49 PM
Hey Danz:

That is all.

Well played. lol.

danz · « **Reply #8 on:** August 19, 2012, 03:24:29 PM »

paid up mah fucka. cant wait to get the injectors then i can start it

the head is ready to pick up, as well as a lightened flywheel

also got some ARPs ready to pick up.

already got the head gasket and shit. gotta grind down the dowels if they are too tall and then slap it together with the colt cam.

crxvtec91 · « **Reply #9 on:** August 20, 2012, 01:52:21 PM »

Do you plan to clay the motor to see where the limits are?

danz · « **Reply #10 on:** August 20, 2012, 07:08:56 PM »

Quote from: crxvtec91 on August 20, 2012, 01:52:21 PM

Do you plan to clay the motor to see where the limits are?

nah. if i decide to play with the cam timing ill just advance/retard till it hits something, and then ill pull back a few degrees. hah

well maybe ill clay depends how i feel when its going together and if i have clay around i guess more so than anything.

ratcityrex · « **Reply #11 on:** August 20, 2012, 08:30:22 PM »

Quote from: danz on August 20, 2012, 07:08:56 PM

Quote from: crxvtec91 on August 20, 2012, 01:52:21 PM
Do you plan to clay the motor to see where the limits are?

nah. if i decide to play with the cam timing ill just advance/retard till it hits something, and then ill pull back a few degrees. hah

well maybe ill clay depends how i feel when its going together and if i have clay around i guess more so than anything.

if your kid has play-doh, steal it and use that.

chris · « **Reply #12 on:** August 20, 2012, 11:42:15 PM »

whatever happened to fjt I dont see their website up anymore

crxvtec91 · « **Reply #13 on:** August 21, 2012, 11:19:08 AM »

Quote from: chris M on August 20, 2012, 11:42:15 PM

whatever happened to fjt I dont see their website up anymore

He ran into a lot of problems and back off for now.

danz · « **Reply #14 on:** August 24, 2012, 12:14:01 AM »

pics of the hiprofile injectors. cant wait to try em out. im pretty stoked.

nog email me the offsets dont make me do it the hard way!! lol

snm95ls · « **Reply #15 on:** August 24, 2012, 09:17:20 AM »

Do work son!

crx-t · « **Reply #16 on:** August 24, 2012, 10:13:45 AM »

Fuck yeah!

danz · « **Reply #17 on:** September 02, 2012, 12:03:07 AM »

these obx lsds are junk i cant even run a shim the clearance is .014 without one. wtf?? lol

danz · « **Reply #18 on:** September 18, 2012, 02:27:49 AM »

it runs bitches.

forged d15b2 vitara turbo build start up video

plus, DIY garage balanced light weight flywheel.

JaredKaragen · « **Reply #19 on:** September 18, 2012, 04:30:17 AM »

A+ for the balance.... an old tire balancer does wonders. Most peeps do it diy and wonder why it vibrates =)

Good to see your pushing the limits once again =)

danz · « **Reply #20 on:** September 18, 2012, 08:17:29 PM »

i had the machine shop surface off as much as they could so its around 13lbs or so. it could be lighter but i am happy.

i balanced it then i put a stock flywheel in the balancing rig after mine was done, and the stock one was so fucked. it had an even worse heavy spot than the light one did before i balanced it. lol

crxvtec91 · « **Reply #21 on:** September 19, 2012, 11:45:11 AM »

Quote from: danz on September 18, 2012, 08:17:29 PM

i had the machine shop surface off as much as they could so its around 13lbs or so. it could be lighter but i am happy.

i balanced it then i put a stock flywheel in the balancing rig after mine was done, and the stock one was so fucked. it had an even worse heavy spot than the light one did before i balanced it. lol

I found the oem fw part funny since you where able to balance it better

danz · « **Reply #22 on:** October 13, 2012, 04:33:00 PM »

flywheels holding up well so far.

got like 2000km on the build, ripping it on 6psi right now. gonna toss the 3 bar on sooner or later then turn it up a bit.

heres a me-he-co ripper

Turbo D15B2 pull

also modified the clutch cable to delete the bullshit rubber bushing on the end of it. im sure it made things a nightmare since the clutch is so stiff. also extended the top of the clutch pedal for a bit more throw on the cable. clutch is MUCH better now and the TOB doesnt have to be riding on the clutch 100% of the time as it did before.

future muffler.

Minor Threat · « **Reply #23 on:** October 13, 2012, 10:42:20 PM »

Clean hatch.

ratcityrex · « **Reply #24 on:** October 14, 2012, 06:37:21 PM »

Your oil cap is pretty clever. I like!

danz · « **Reply #25 on:** October 14, 2012, 10:11:09 PM »

oil cap is gone... come up to mission raceway some time next year, remind me, and its yours!

ratcityrex · « **Reply #26 on:** October 14, 2012, 11:07:35 PM »

Quote from: danz on October 14, 2012, 10:11:09 PM

oil cap is gone... come up to mission raceway some time next year, remind me, and its yours!

So is that in Canada or on this side of the boarder?

danz · « **Reply #27 on:** November 27, 2013, 11:09:20 PM »

Mission is in Canada. Super close to the border, 10 mins from the border.

PS, the diy balanced flywheel still working to this day! lol

Sorry about the pics.

danz · « **Reply #28 on:** November 29, 2013, 11:45:32 PM »

Heres some pics of the car and shit so this thread at least makes a little sense.

Paint cut polish. DIY of course. 3m rubbing compound and medium foam pad on PC7424

The setup

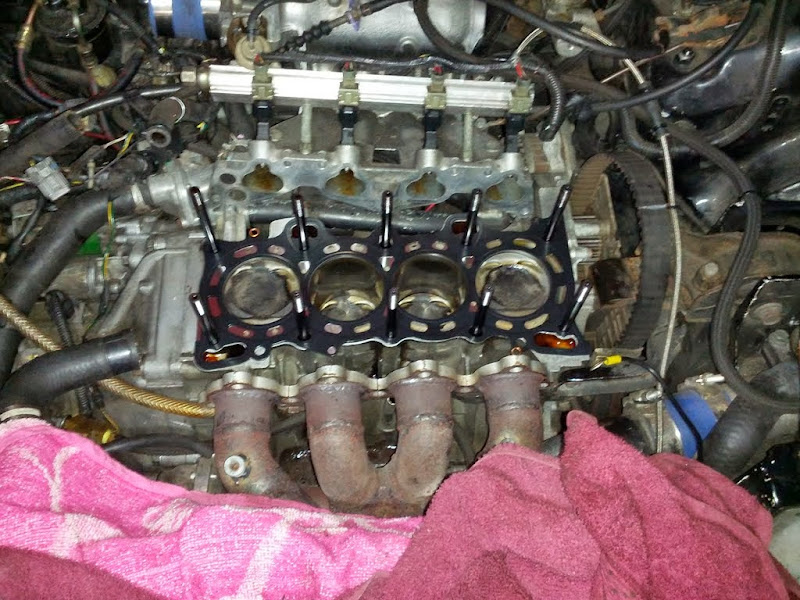

First problem. Blown HG. I had it tuned SUPER agressive, trying to hit 11's on 12psi on a 1.5L non-vtec... then I left that tune on, it was running WICKED, but got super cold one dry night, pavement was warm still, air super cool and dry, racing a porsche up a 14% hill, and well... you know.

What the pistons carbon looks like. I dont like it.

I know you egg nogs will like this.

Nylon reinforced muffler support buffers.

danz · « **Reply #29 on:** November 30, 2013, 12:08:29 AM »

Oh and this little innovation on my 10 second race car turned winter beater.

Race mount. LOL

Threaded a cut up boost coupler through a hole i drilled through the rubber

And a sweet air block off plate I made for MPG.
