Author Topic: cylinder support system?  (Read 19486 times)

turbohf

  • aka: the rHMT Jew
  • Administrator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 9712
  • Overkill is Underrated
cylinder support system?
« on: July 23, 2013, 04:03:08 PM »

http://www.b20vtec.com/forums/engine-building/806195-css-cylinder-support-system.html

http://www.cylindersupportsystem.com/



thoughts?  specifically I was thinking of doing this to a B20... honestly I wouldn't even bother with the rest...
Logged
Dustin  :Jew:
1987 Buick Regal Limited 6.0L/4L80E (LQ4, 862 heads, tbss intake, 92mm tb, e1841p cam, Holley EFI)
2000 Silverado LS 5.3L Reg Cab Short Bed
1966 Chevy II Nova 400 4dr Sedan V8


'Faster, Faster, until the thrill of speed overcomes the fear of death.'

92CXyD

  • Twincharged Smeghead
  • Global Moderator
  • Certified OG
  • *****
  • Online Online
  • Posts: 6770
  • I look around and all I see is Smegheads
Re: cylinder support system?
« Reply #1 on: July 23, 2013, 04:58:48 PM »

Talk to 1991civicsi

http://www.realhomemadeturbo.com/forum/index.php/topic,703.250.html

Look towards the bottom of the page  :noel:

PhilStubbs

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 5882
  • Teh Secksy.....I has it
Re: cylinder support system?
« Reply #2 on: July 23, 2013, 10:42:45 PM »

http://honda-tech.com/showthread.php?t=3139187

I know I know, it's an HT link, but it proves a point
Logged
obd1>gtgtall

 fucking box started smoking and i saw a flame start up so i grabbed a bucket of water and splashed it on the breaker box.

turbohf

  • aka: the rHMT Jew
  • Administrator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 9712
  • Overkill is Underrated
Re: cylinder support system?
« Reply #3 on: July 24, 2013, 12:25:15 AM »

i was gonna post up a bunch of links. been searching all day. but my phone is being a bitch and has forced closed my browser like a dozen times or more.  :evil:

in general i dont give a shit about sleeving. i know the power im looking to make has been done, can be done, and i have no problem doing....on a B18. its just the homo siamese B20B/Z sleeves that are bothering me. i would like to push on this fucker to the 400+whp/400fttq range. daily.


so, im not really wanting to use this as a cracked sleeve prevention, but more as keeping the 4 cylinders in there place and keep them from breaking away from each other. and from what it looks like, it will do better at that then the other.....??



also have another....concern? from what he is saying, and then says. this is precision machined specifically to the block. and has had motors that have already been bored/honed or not at all use his system with no issue. but then what seems maybe a disclaimer that you should bore/hone the motor afterwords.
but i dont need to tell you that im a jew. i have no plans on running this motor if it needs bored/honed. that will push the price of this quickly towards a sleeved motor.

thoughts on that?
Logged
Dustin  :Jew:
1987 Buick Regal Limited 6.0L/4L80E (LQ4, 862 heads, tbss intake, 92mm tb, e1841p cam, Holley EFI)
2000 Silverado LS 5.3L Reg Cab Short Bed
1966 Chevy II Nova 400 4dr Sedan V8


'Faster, Faster, until the thrill of speed overcomes the fear of death.'

turbohf

  • aka: the rHMT Jew
  • Administrator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 9712
  • Overkill is Underrated
Re: cylinder support system?
« Reply #4 on: July 24, 2013, 12:30:29 AM »

i did find a B20B/Z

no word on turbo motors with power. he said in a thread that most have been for NA/nitrous motors.




http://honda-tech.com/showthread.php?t=3042021 <~from that thread.



also, like how that thread on hatertech seemed to only bring out the haters, not silence them. classic. ::)
Logged
Dustin  :Jew:
1987 Buick Regal Limited 6.0L/4L80E (LQ4, 862 heads, tbss intake, 92mm tb, e1841p cam, Holley EFI)
2000 Silverado LS 5.3L Reg Cab Short Bed
1966 Chevy II Nova 400 4dr Sedan V8


'Faster, Faster, until the thrill of speed overcomes the fear of death.'

PhilStubbs

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 5882
  • Teh Secksy.....I has it
Re: cylinder support system?
« Reply #5 on: July 24, 2013, 06:44:00 AM »

It sounds like the only real option for you then. I talked to them about not boring the block after cause I had plans of pushing the block to its limits. D's seem to crack horizontally in the 600-650 range, I want to get into the 9's on stock sleeves. They seemed to have no problem with not boring the cylinders, but in disclaimer fashion said they recommend it after the conversation. I wouldn't hesitate to only run a hone through yourself afterwards and do work.
Logged
obd1>gtgtall

 fucking box started smoking and i saw a flame start up so i grabbed a bucket of water and splashed it on the breaker box.

crxvtec91

  • Administrator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 8343
  • RIP old hmt. SloS13 for King!!!
Re: cylinder support system?
« Reply #6 on: July 24, 2013, 09:44:58 AM »

CSS=WIN!

I know of a few locals in the 600-850hp range with those css and a few are going on 3 years and tons of passes!

Here is all you need to know, find 1 crack sleeve that crack from power! There is always talk about it being a block guard bah bah bah YET not one crack sleeve. I saw a few dead motors and the sleeves where hurt, but when a motor drops a valve nothing is going to save it.

Last for the money, it is hands down one of the best and cheapest things you can do to keep a motor alive above 500hp on my book.
Logged
My build thread; http://www.realhomemadeturbo.com/forum/index.php?topic=2444.0


I like my girls like I like my cars, rich and retarded.

walter

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 2931
Re: cylinder support system?
« Reply #7 on: July 25, 2013, 10:00:06 AM »

so , it's like a blockguard but made more precise and installed properly..
Logged

Joseph Davis

  • Verbal Assault Technician
  • RHMT Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 34733
  • Eugenics prevents retards like widebody93
    • TURBO THIS
Re: cylinder support system?
« Reply #8 on: July 25, 2013, 11:18:29 AM »

B20 sleeves are good to 350 whp.  It's B16 sleeves that are junk.

turbohf

  • aka: the rHMT Jew
  • Administrator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 9712
  • Overkill is Underrated
Re: cylinder support system?
« Reply #9 on: July 25, 2013, 12:18:47 PM »

B20 sleeves are good to 350 whp.  It's B16 sleeves that are junk.

looking for 400-550whp tho....
Logged
Dustin  :Jew:
1987 Buick Regal Limited 6.0L/4L80E (LQ4, 862 heads, tbss intake, 92mm tb, e1841p cam, Holley EFI)
2000 Silverado LS 5.3L Reg Cab Short Bed
1966 Chevy II Nova 400 4dr Sedan V8


'Faster, Faster, until the thrill of speed overcomes the fear of death.'

ratcityrex

  • I Get Blown Daily
  • Global Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 7370
Re: cylinder support system?
« Reply #10 on: July 25, 2013, 01:06:13 PM »

Ok, I see why people use these on there track cars. But how cool/hot do these make the motor run in day to day stop and go traffic? That would be my main concern with these. With the location that its supporting the block I would believe that it could Fuck your cooling. In a race car what ever. But heat soaking could Fuck you on this if you were to dd it.
Logged
New setup is old bottom end with a hype r head with gsr cams. built lsv with hx35 @ 26psi on pump gas
LEED tuned! 434hp/329tq http://www.youtube.com/watch?v=_pbDXZxZdZs
http://www.realhomemadeturbo.com/forum/index.php/topic,16195.0.html

Old Setup B18a1 296hp/289tq LEED Tuned 20psi on pump! http://www.youtube.com/watch?v=2Yj-Z90j4W4
http://www.realhomemadeturbo.com/forum/index.php/topic,205.msg2437.html#msg2437

crxvtec91

  • Administrator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 8343
  • RIP old hmt. SloS13 for King!!!
Re: cylinder support system?
« Reply #11 on: July 25, 2013, 01:15:35 PM »

Ok, I see why people use these on there track cars. But how cool/hot do these make the motor run in day to day stop and go traffic? That would be my main concern with these. With the location that its supporting the block I would believe that it could Fuck your cooling. In a race car what ever. But heat soaking could Fuck you on this if you were to dd it.

No cooling issues! Think about it if people with fully sleeved blocks dont have issues this wont either its aluminum and should help remove heat from the sleeve if anything.
Logged
My build thread; http://www.realhomemadeturbo.com/forum/index.php?topic=2444.0


I like my girls like I like my cars, rich and retarded.

turbohf

  • aka: the rHMT Jew
  • Administrator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 9712
  • Overkill is Underrated
Re: cylinder support system?
« Reply #12 on: July 25, 2013, 01:26:48 PM »

I have read threw lots of these posts now. and they sell say no cooling issues. but I know people with aebs/solid deck sleeves that say the same.

but I'm not concerned with what the coolant gauge/sensor says. I'm way more concerned with actual cylinder temps. the open deck design is said to promote lower temps in the upper part of the stroke. for better performance/emissions etc.
Logged
Dustin  :Jew:
1987 Buick Regal Limited 6.0L/4L80E (LQ4, 862 heads, tbss intake, 92mm tb, e1841p cam, Holley EFI)
2000 Silverado LS 5.3L Reg Cab Short Bed
1966 Chevy II Nova 400 4dr Sedan V8


'Faster, Faster, until the thrill of speed overcomes the fear of death.'

Joseph Davis

  • Verbal Assault Technician
  • RHMT Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 34733
  • Eugenics prevents retards like widebody93
    • TURBO THIS
Re: cylinder support system?
« Reply #13 on: July 25, 2013, 03:42:15 PM »

B20 sleeves are good to 350 whp.  It's B16 sleeves that are junk.

looking for 400-550whp tho....

Barely any of that is obtainable on pump gas, next to none of it will hook on the street.


the open deck design is said to promote lower temps in the upper part of the stroke. for better performance/emissions etc.

Fuck your emissions, and the boost controller is your better performance.

ratcityrex

  • I Get Blown Daily
  • Global Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 7370
Re: cylinder support system?
« Reply #14 on: July 25, 2013, 03:48:26 PM »

I would just think that with a closed deck at the top it would create hotter areas for det to happen. Fuck it dustin! Run a stock block and see where it breaks. Chances are you wont even have it long enough to have it tuned and you will sell it to start a new build.
Logged
New setup is old bottom end with a hype r head with gsr cams. built lsv with hx35 @ 26psi on pump gas
LEED tuned! 434hp/329tq http://www.youtube.com/watch?v=_pbDXZxZdZs
http://www.realhomemadeturbo.com/forum/index.php/topic,16195.0.html

Old Setup B18a1 296hp/289tq LEED Tuned 20psi on pump! http://www.youtube.com/watch?v=2Yj-Z90j4W4
http://www.realhomemadeturbo.com/forum/index.php/topic,205.msg2437.html#msg2437

PhilStubbs

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 5882
  • Teh Secksy.....I has it
Re: cylinder support system?
« Reply #15 on: July 25, 2013, 03:59:30 PM »

I don't see the point of boosting a b20. I have tuned plenty of 400+hp vtec b18's on pump gas. Why bother with the fragile b20?
Logged
obd1>gtgtall

 fucking box started smoking and i saw a flame start up so i grabbed a bucket of water and splashed it on the breaker box.

turbohf

  • aka: the rHMT Jew
  • Administrator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 9712
  • Overkill is Underrated
Re: cylinder support system?
« Reply #16 on: July 25, 2013, 04:39:05 PM »

more displacement.


it won't hook anything over 300. don't care.


will be running e85



want to run the B20 cuz I'm gonna have it. why not :P




B18 is still in the car anyway. I'll work at breaking that first. just planning for built motor when it breaks.
Logged
Dustin  :Jew:
1987 Buick Regal Limited 6.0L/4L80E (LQ4, 862 heads, tbss intake, 92mm tb, e1841p cam, Holley EFI)
2000 Silverado LS 5.3L Reg Cab Short Bed
1966 Chevy II Nova 400 4dr Sedan V8


'Faster, Faster, until the thrill of speed overcomes the fear of death.'

MantisX

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 362
Re: cylinder support system?
« Reply #17 on: July 26, 2013, 05:56:33 PM »

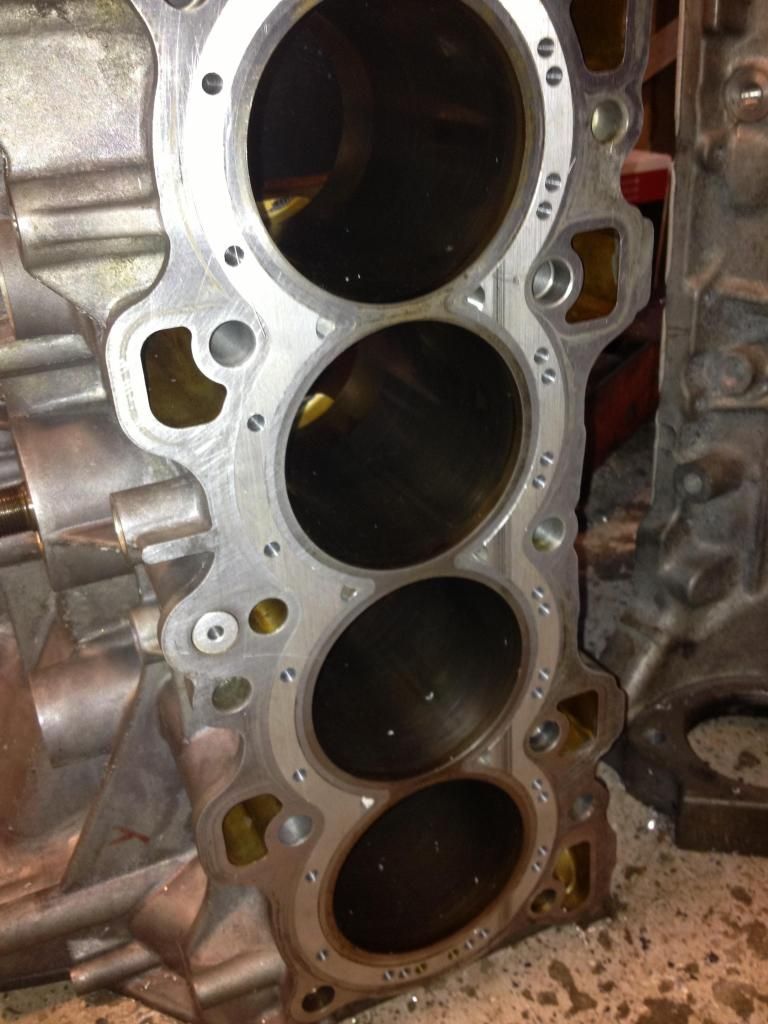

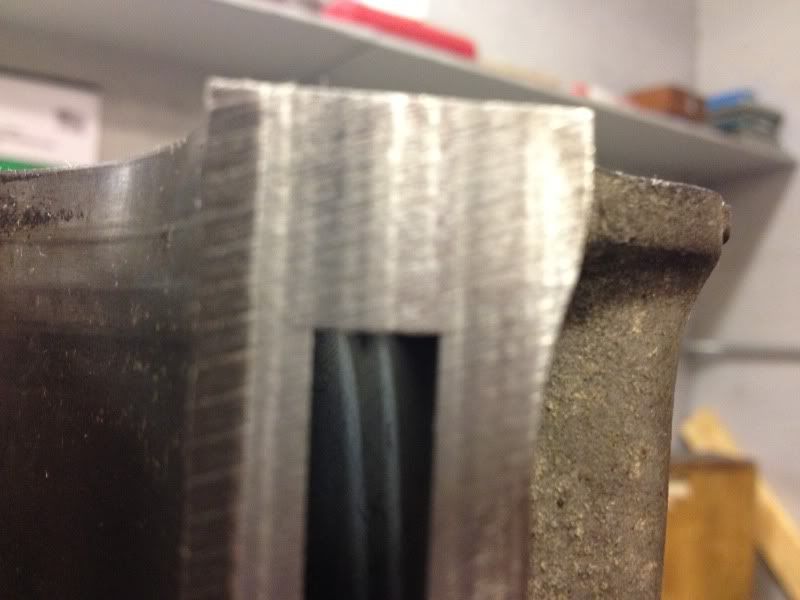

Im coming up on 2k miles with a  b18b CSS block throwing 25-26 psi at it from a GT3076r. Im not raping it at every turn but it is being raped. So far so good. ECTs never go over 200F.
« Last Edit: July 26, 2013, 05:58:39 PM by MantisX »
Logged

ratcityrex

  • I Get Blown Daily
  • Global Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 7370
Re: cylinder support system?
« Reply #18 on: July 26, 2013, 06:15:14 PM »

Im coming up on 2k miles with a  b18b CSS block throwing 25-26 psi at it from a GT3076r. Im not raping it at every turn but it is being raped. So far so good. ECTs never go over 200F.

Is it daily driven?
Logged
New setup is old bottom end with a hype r head with gsr cams. built lsv with hx35 @ 26psi on pump gas
LEED tuned! 434hp/329tq http://www.youtube.com/watch?v=_pbDXZxZdZs
http://www.realhomemadeturbo.com/forum/index.php/topic,16195.0.html

Old Setup B18a1 296hp/289tq LEED Tuned 20psi on pump! http://www.youtube.com/watch?v=2Yj-Z90j4W4
http://www.realhomemadeturbo.com/forum/index.php/topic,205.msg2437.html#msg2437

Foowee

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 1816
Re: cylinder support system?
« Reply #19 on: July 28, 2013, 11:28:53 PM »

Ok, I see why people use these on there track cars. But how cool/hot do these make the motor run in day to day stop and go traffic? That would be my main concern with these. With the location that its supporting the block I would believe that it could Fuck your cooling. In a race car what ever. But heat soaking could Fuck you on this if you were to dd it.

No cooling issues! Think about it if people with fully sleeved blocks dont have issues this wont either its aluminum and should help remove heat from the sleeve if anything.

I am planning on using one of these for my next build.  My current setup has devcon at the top n in the middle, hindering coolant flow way more than this ever would.  In stop and go traffic I see 200-205ish coolant temps.  Cruising it sees 170-185.  Keep in mind I use a 170 tstat with a couple holes drilled in it, a 1.1 bar cap, and a full width radiator.

Think about the direction the water pump moves coolant, toward the dipstick/exhaust(heated) side of the block.  I don't see these blocks being a problem for use in a dd...
Logged

HiProfile

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 4564
  • Injector Kingpin
Re: cylinder support system?
« Reply #20 on: July 31, 2013, 11:01:27 PM »

I would actually think this won't hurt cooling much at all. The heat will transfer to the outside block wall, so you'd actually have more surface area for the water to cool. It would create some hotspots compared to no CSS, but aluminum conducts heat much better than a full cast iron sleeve.

I'd love to see this done to an F23 block with a built H22 head. Someone convince Spiker to get one as a backup block for the third time he puts a hole in his H22.
Logged
they mspainted dildoes in my mom'#039#039s hand, in a picture of her in a hospital bed. -JD
dem gurls need some boobz! -Engloid

snm95ls

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3662
Re: cylinder support system?
« Reply #21 on: July 31, 2013, 11:05:22 PM »

It would be neat to use on my million dollar B20V project, but I seem to make bad decisions about who to trust when it comes to having work done or buying aftermarket parts for that pile.

fuck.

 :P

crxvtec91

  • Administrator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 8343
  • RIP old hmt. SloS13 for King!!!
Logged
My build thread; http://www.realhomemadeturbo.com/forum/index.php?topic=2444.0


I like my girls like I like my cars, rich and retarded.

snm95ls

  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3662
Re: cylinder support system?
« Reply #23 on: August 06, 2013, 10:20:01 AM »

Jahheeeezzzzusss.

Low 9s on "stock sleeves."

MantisX

  • Sr. Member
  • ****
  • Offline Offline
  • Posts: 362
Re: cylinder support system?
« Reply #24 on: August 06, 2013, 11:39:49 AM »

Im coming up on 2k miles with a  b18b CSS block throwing 25-26 psi at it from a GT3076r. Im not raping it at every turn but it is being raped. So far so good. ECTs never go over 200F.

Is it daily driven?

Damn near, It sees the streets at least 3-5 out of 7 days.
Logged

ratcityrex

  • I Get Blown Daily
  • Global Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 7370
Re: cylinder support system?
« Reply #25 on: August 06, 2013, 11:46:01 AM »

Im coming up on 2k miles with a  b18b CSS block throwing 25-26 psi at it from a GT3076r. Im not raping it at every turn but it is being raped. So far so good. ECTs never go over 200F.

Is it daily driven?

Damn near, It sees the streets at least 3-5 out of 7 days.


Well shit, that's bad ass.
Logged
New setup is old bottom end with a hype r head with gsr cams. built lsv with hx35 @ 26psi on pump gas
LEED tuned! 434hp/329tq http://www.youtube.com/watch?v=_pbDXZxZdZs
http://www.realhomemadeturbo.com/forum/index.php/topic,16195.0.html

Old Setup B18a1 296hp/289tq LEED Tuned 20psi on pump! http://www.youtube.com/watch?v=2Yj-Z90j4W4
http://www.realhomemadeturbo.com/forum/index.php/topic,205.msg2437.html#msg2437

Joseph Davis

  • Verbal Assault Technician
  • RHMT Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 34733
  • Eugenics prevents retards like widebody93
    • TURBO THIS
Re: cylinder support system?
« Reply #26 on: August 06, 2013, 02:40:14 PM »

Awesome to hear, Otis.

Kent54935

  • N00B *Read Intro Sticky*
  • *
  • Offline Offline
  • Posts: 1
  • RHMT
Re: cylinder support system?
« Reply #27 on: April 05, 2017, 06:46:19 PM »

So i see alot if honda motors that have used this CSS process. I am wondering what everyone thinks as I am doong research to see if this is worth doing for the build of my caliber srt4 as opposed to getting the block resleeved. I have an open end block and am looking to be putting 450-470whp to it. Any thoughts or opinions??
Logged

Ntrain2k

  • Global Moderator
  • Certified OG
  • *****
  • Offline Offline
  • Posts: 3015
Re: cylinder support system?
« Reply #28 on: April 05, 2017, 08:30:21 PM »

So i see alot if honda motors that have used this CSS process. I am wondering what everyone thinks as I am doong research to see if this is worth doing for the build of my caliber srt4 as opposed to getting the block resleeved. I have an open end block and am looking to be putting 450-470whp to it. Any thoughts or opinions??

Thought or opinion?

Who the fuck are you?

http://www.realhomemadeturbo.com/forum/index.php/topic,14535.0.html
Logged
Pages: [1]   Go Up
